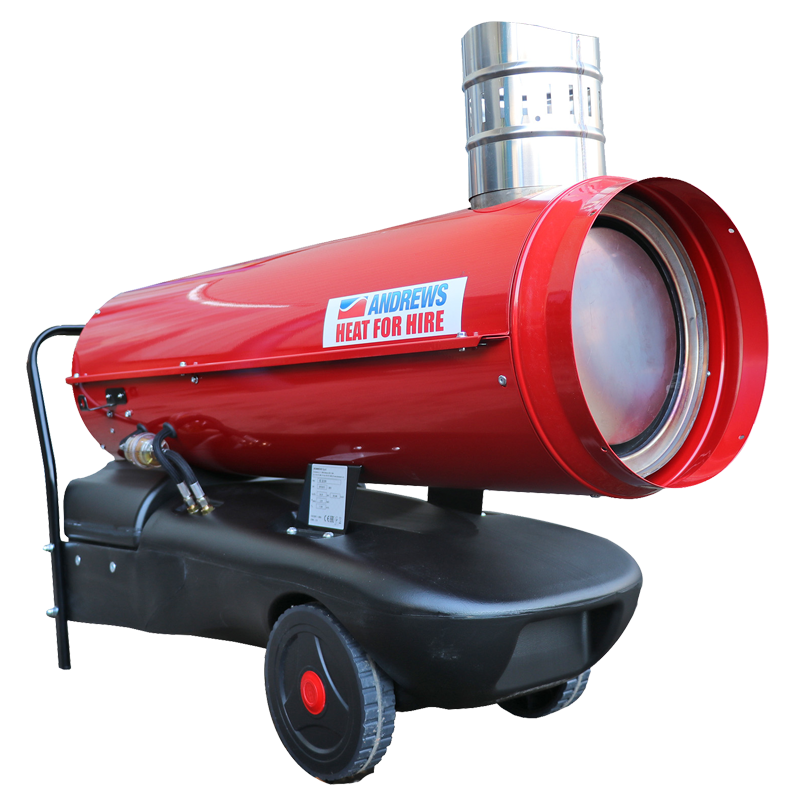

ID35 indirect fired dual voltage oil heater
Our dual voltage ID35 unit is an indirect fired oil heater designed for use in places with limited ventilation. This unit is compatible with both an 110V and 240V power supply and has been specifically introduced with construction and housebuilding applications in mind. The use of an 110V electricity network is generally preferred on building sites as it is considered much safer in the event of accidents, with less electricity flowing through the unit helping to reduce the chances of someone being injury on site. Once stationed in a selected area, the portable unit can be commissioned almost instantly to provide customers with safe, dry, fume-free heat. Low power consumption makes it ideal for applications where unattended operation is necessary, including warehouses, sports halls and exhibition halls.
Click image to Zoom
Features
- Fully portable – can be easily positioned
- Fully automatic operation – can run unattended
- Light and compact – for easy transportation
- Robust construction – will stand up to the rigour of industrial use
- Economical – reducing running costs
- Easy installation – plug in and switch on
- Built in fuel tank – 16 hours heating on single tank
- Internal thermostat – set desired temperature
Environments
- Building sites
- Retail and car showrooms
- Exhibition halls
- Marquees
- Workshops
- Factories
- Manufacture and Industry
- Warehouses
- Clothing manufacturers
- Housebuilding
Accessories
- RCD
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 20M x 230V EXTENSION LEAD 2.5MM DIA
- T16 THERMOSTAT C/W 10M CABLE
- 150MM EXHAUST FLUE 1 METER
- 8M X 300MM HEATER DUCT (12")
- 300MM COUPLER/CONNECTING COLLAR
- DUCT Y 300MM TO 2 X 300MM
- SPECIAL AIR DIFFUSER (SAD BOX)
- GAS OIL
Specifications
- Nominal heating duty
- 32kW
- Air flow (max)
- 1,150 m3/h
- Typical heated area
- 620 m3
- Power supply
- 110V 1ph 50Hz Run 3.3
- Plug type
- A BS4343 16A 110V
- Noise level (max)
- 72 dBA @ 1 metre
- Weight
- 48 kg (90 kg fuelled)
- Dimensions (L x W x H)
- 1,215 x 440 x 670 mm
- Minimum flue
- 1 metre (150mm od)
- Duct length (max)
- 8 metres
- Duct diameter size
- 300mm
- Control
- Manual (external controls available)
- Fuel type
- Gas Oil, HVO, IHO
- Fuel consumption
- 2.7 l/h
- Tank capacity
- 42 litres
- Hours run
- 15.5 hours (single tank)
