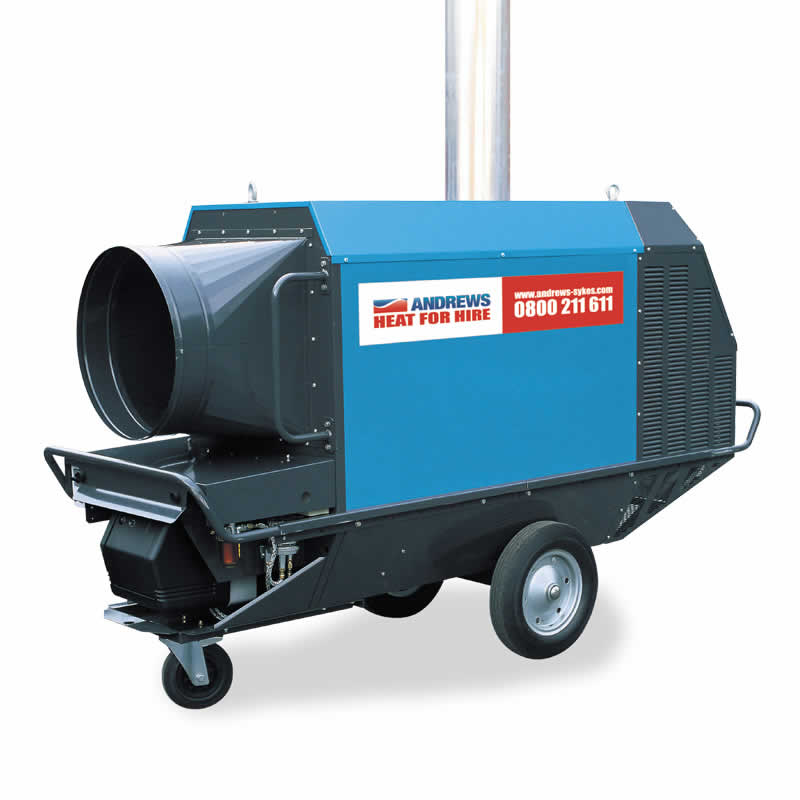

Aurora FH 111 DV Indirect Fired Oil Heater
The Aurora FH111 is one of the most economical oil-fired heaters in our fleet. Robustly constructed and environmentally friendly, the unit is 92%+ efficient when operating at full capacity. This particular model is easily transportable and compact without compromising on power, and at only 78cm wide can be used to provide heat to inaccessible areas.
Summary
Features & Environments
Specifications
Accessories
The Aurora FH111 is a high-capacity oil-fired heater with a nominal heating duty of 110kW. A single unit is able to heat areas up to 2,440m³ in size, consuming 10.9l/h of fuel on average.
Mounted on wheels to aid manoeuvrability, the Aurora FH111 is available with up to 40m of ducting and operates on either a 230V or 110V power supply.
Once stationed in a selected area, the heater can be commissioned almost instantly, and is available with external controls if desired.
Features
|
|
Environments
|
|
- Nominal heating duty
- 110 kW 375320 btu
- Duct size
- 450 mm
- Air flow (max)
- 8000 m3/h
- Fuel Consumption
- 10.9 l/h
- Power supply
- 230/110V 1 ph 50 Hz Run 9.2/16 A
- Typical heated area
- 2,440 m3
- Noise level (max)
- 79 dBA @ 1 metre
- Dimensions (L x W x H)
- 2230 x 780 x 1340 mm
- Weight (kg)
- 380 kg
- Control
- Manual, External controls available(24 V external control circuit)
- Plug type
- BS4343 230 V 16 A, BS4343 100V 32 A
- Flue size (min)
- 1 metre x 200 mm
- Duct length (max)
- 40 metres
- Fuel tank
- Remote fuel tank required
- Generator size
- 10 kVA
- RCD
- 230V / 110V 5KVA CONTINIOUS TRANSFORMER
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 20M x 230V EXTENSION LEAD 2.5MM DIA
- 10M x 110V EXTENSION LEAD 4MM DIA
- 20M x 110V EXTENSION LEAD 4MM DIA
- T16 THERMOSTAT C/W 10M CABLE
- 200MM EXHAUST FLUE 1 METER
- DUCT Y 450MM TO 2 X 300MM
- 8M X 450MM HEATER DUCT (18"")
- 450MM COUPLER/CONNECTING COLLAR
- 8M X 300MM HEATER DUCT (12"")
- DUCT Y 300MM TO 2 X 300MM
- 300MM COUPLER/CONNECTING COLLAR
- BUNDED FUEL BUGGY 110 LITRE
- 1000L BUNDED FUEL TANK
- 2000L BUNDED FUEL TANK
- 2800L BUNDED FUEL TANK
- 3000L BUNDED FUEL TANK
- 5M HP FUEL LINE
- GAS OIL
- 50% RETURN AIR DUCT ADAPTOR 600MM
