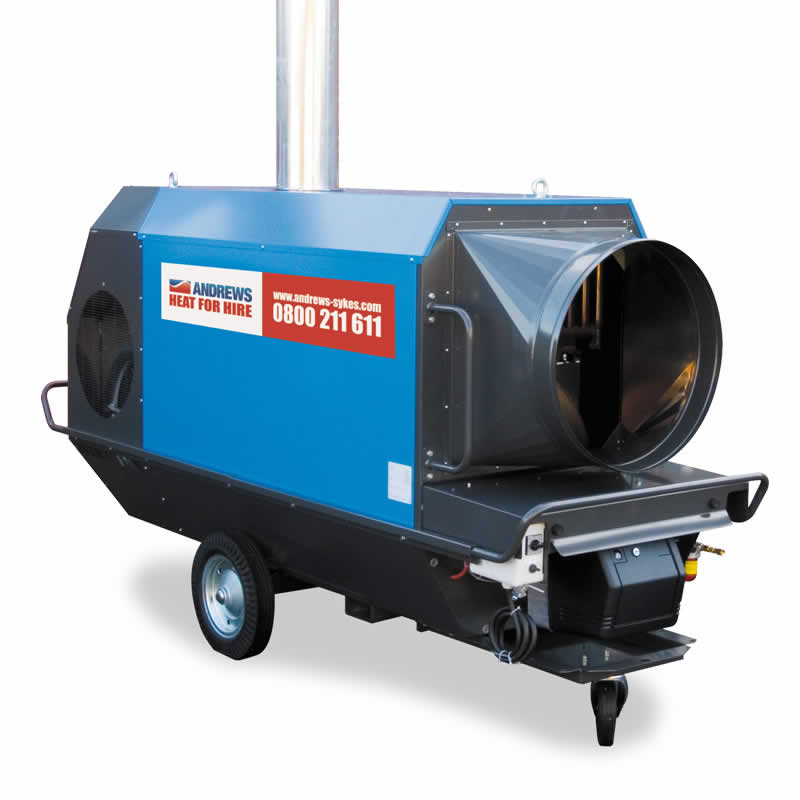

Aurora FH 185 Indirect Fired Oil Heater
The Aurora FH185 is one the most economical oil-fired heaters in our fleet. Robustly constructed and environmentally friendly, the unit is 92%+ efficient when operating at full capacity. The Aurora FH 185 is very portable, has a range of ducting outlets, and even crane hooks and fork lift slots to simplify delivery and positioning.
Summary
Features & Environments
Specifications
Accessories
The Aurora FH185 is a high-capacity oil-fired heater with a nominal heating duty of 200kW. A single unit is able to heat areas up to 4,204m³ in size, consuming 19.4l/h of fuel on average.
Mounted on wheels to aid manoeuvrability, the Aurora FH 185 is available with up to 40m of ducting and requires a 415V power supply in order to function.
Once stationed in a selected area, the heater can be commissioned almost instantly, and can be supplied with external controls if required.
Features
|
|
Environments
|
|
- Nominal heating duty
- 200 kW
- Generator size
- 27 kVA
- Air flow (max)
- 15000 m3/h
- Duct size
- 600 mm
- Power supply
- 415 V 3 ph +E 50 Hz Run 10.4 A
- Fuel Consumption
- 19.4 l/h
- Noise level (max)
- 82 dBA @ 1 metre
- Typical heated area
- 4,204 m3
- Weight (kg)
- 428 kg
- Dimensions (L x W x H)
- 2710 x 910 x 1520 mm
- Control
- Manual (External controls available)
- Flue size (min)
- 1 metre x 200 mm
- Plug type
- BS4343 4 pin 3 ph 32 A
- Fuel tank
- Remote fuel tank required
- Duct length (max)
- 40 metres
- 10M x 415V EXTENSION LEAD 4 PIN 32 AMP 2.5MM DIA
- 20M x 415V EXTENSION LEAD 4 PIN 32 AMP 4MM DIA
- T16 THERMOSTAT C/W 10M CABLE
- 200MM EXHAUST FLUE 1 METER
- 8M X 600MM HEATER DUCT (24"")
- 600MM COUPLER/CONNECTING COLLAR
- DUCT Y 600MM TO 2 X 600MM
- DUCT Y 600MM TO 2 X 450MM
- 8M X 450MM HEATER DUCT (18"")
- 450MM COUPLER/CONNECTING COLLAR
- 1000L BUNDED FUEL TANK
- 2000L BUNDED FUEL TANK
- 2800L BUNDED FUEL TANK
- 3000L BUNDED FUEL TANK
- 5M HP FUEL LINE
- GAS OIL
- 50% RETURN AIR DUCT ADAPTOR 600MM
