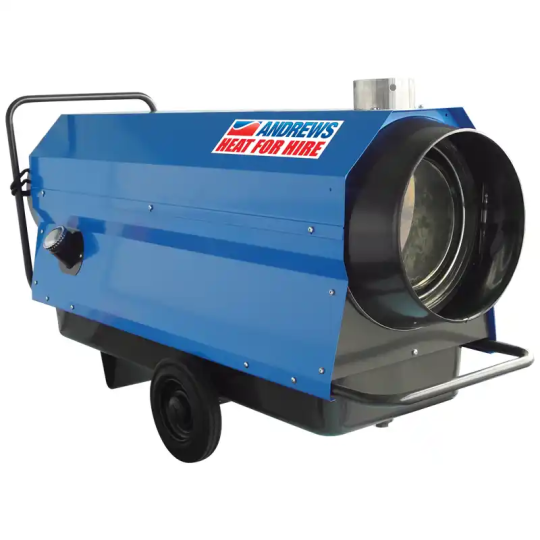

ID35 indirect fired oil heater
The ID35 is an indirect fired oil heater designed for use in places with limited ventilation. Once stationed in a selected area, the portable unit can be commissioned almost instantly to provide customers with safe, dry, fume-free heat. The ID35 requires a 230V power supply in order to function and runs on gas oil consuming just 2.4l/h of fuel on average. This low power consumption makes it ideal for applications where unattended operation is necessary, including warehouses, sports halls and exhibition halls.
Features & Environments
Specifications
Accessories
Features
|
|
Environments
|
|
- Nominal heating duty
- 24.8kW 84,617 btu
- Fuel Consumption
- 2.4 l/h
- Air flow (max)
- 1,450 m³/h
- Typical heated area
- 600 m³
- Power supply
- 230 V 1ph 50Hz Run 1.5 A
- Fuel type
- Gas Oil
- Noise level (max)
- 75 dBA @ 1 metre
- Duct diameter size
- 300mm
- Weight (kg)
- 58 kg (98 kg fuelled)
- Tank capacity
- 40 litres
- Dimension
- 1250 x 490 x 690 mm
- Hours run
- 16 hours (single tank)
- Plug type
- BS1363 230 V
- Dimensions (L x W x H)
- 1,250 x 490 x 690 mm
- Duct length (max)
- 8 metres
- Control
- Manual (external controls available)
- Duct size
- 1 x 300 mm
- Flue size (min)
- 1 metre (150mm od)
- Fuel Tank Capacity
- 40 lts
- RCD
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 20M x 230V EXTENSION LEAD 2.5MM DIA
- T16 THERMOSTAT C/W 10M CABLE
- 150MM EXHAUST FLUE 1 METER
- 8M X 300MM HEATER DUCT (12"")
- 300MM COUPLER/CONNECTING COLLAR
- DUCT Y 300MM TO 2 X 300MM
- SPECIAL AIR DIFFUSER (SAD BOX)
- GAS OIL
