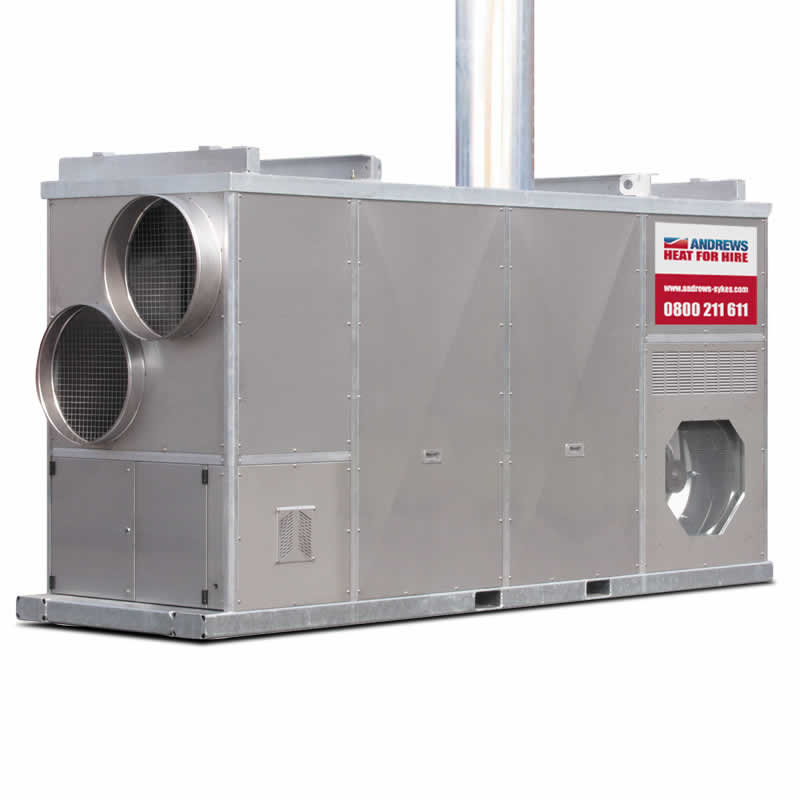

You are here :   Home > Heating > Indirect Fired Oil Heaters > Aurora FH4000 (383kW)
Request Call Back
Features
  • 92%+ heating efficiency – for cost effective use
  • Fully automatic operation – can run unattended
  • Robust construction - will stand up to the rigour of industrial use
  • Option for 24” outlet or four 12” outlets
  • Lockable casing – can be deployed outside
  • Max duct length 40m – flexibility when positioning unit
  • Thermostat connection – set desired temperature
  • Crane hooks and fork lift slots – to simplify delivery and positioning
Environments
  • Building and construction sites
  • Agricultural Locations
  • Warehouses
  • Retail and car showrooms
  • Sports halls and leisure centres
  • Exhibition halls
  • Factories
  • Marquees
Nominal heating duty
383 kW 1,306,796 btu
Duct size
600 mm x 2
Air flow (max)
24,000 m³/h
Fuel Consumption
38 l/h
Power supply
415 V 3 ph +E 50 Hz Run 20 A
Typical heated area
8,457 m³
Noise level (max)
76.5 dBA @ 1 metre
Fuel type
Gas Oil
Weight (kg)
1,300 kg
Flue
1 metre x 250 mm
Dimension
3,850 x 1,200 x 2,015 mm
Tank capacity
Separate fuel buggy/tank required
Plug type
BS4343 4 pin 3 ph 32 A
Dimensions (L x W x H)
3,850 x 1,200 x 2,015 mm
Duct length (max)
40 metres
Control
Manual (external controls available)
Generator size
20 kVA
Flue size (min)
1 metre x 250 mm
  • 10M x 415V EXTENSION LEAD 4 PIN 32 AMP 6MM DIA
  • 20M x 415V EXTENSION LEAD 4 PIN 32 AMP 6MM DIA
  • T16 THERMOSTAT C/W 10M CABLE
  • 250MM EXHAUST FLUE 1 METER
  • 8M X 600MM HEATER DUCT (24"")
  • 600MM COUPLER/CONNECTING COLLAR
  • DUCT Y 600MM TO 2 X 600MM
  • DUCT Y 600MM TO 2 X 450MM
  • 8M X 450MM HEATER DUCT (18"")
  • 450MM COUPLER/CONNECTING COLLAR
  • 2000L BUNDED FUEL TANK
  • 2800L BUNDED FUEL TANK
  • 3000L BUNDED FUEL TANK
  • 5M HP FUEL LINE
  • GAS OIL
  • 50% RETURN AIR DUCT ADAPTOR 600MM
