IG65 DV indirect fired gas heater

The IG65 DV is a robust indirect fired gas heater built to stand up to the rigours of industrial use. The portable unit can be positioned outside the area requiring heating, with flexible ducting enabling up to 65kW of hot air to be distributed inside a location. The IG65 is fuelled from 47kg bottles of propane gas and require a single phase 230V or 110V power supply, making it ideal for use in marquees, warehouses and industrial environments.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Product <br />Video
See it in action

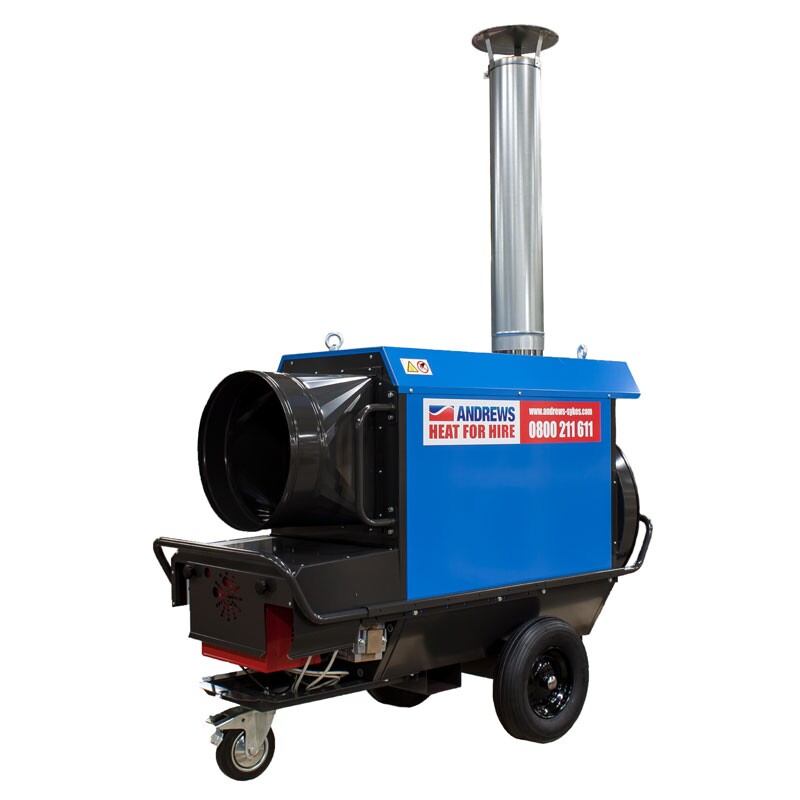

ig65 dv Click image to Zoom

Features

  • wheel-mounted – for easy transportation
  • Fully automatic operation – can run unattended
  • Robust construction – will stand up to the rigour of industrial use
  • 110V or 230V – suitable for all applications
  • Fume free – added safety
  • Easy installation – plug in and switch on
  • Fully portable – can be positioned easily
  • External thermostat – set desired temperature

Environments

  • Building Sites
  • Warehouses
  • Shops
  • Garages
  • Retail and car showrooms
  • Exhibition halls
  • Marquees
  • Sports halls and leisure centres
  • Factories
  • Churches
  • Agricultural Locations

Accessories

  • RCD
  • 230V / 110V 3KVA CONTINIOUS TRANSFORMER
  • 10M x 230V EXTENSION LEAD 2.5MM DIA
  • 20M x 230V EXTENSION LEAD 2.5MM DIA
  • 10M x 110V EXTENSION LEAD 2.5MM DIA
  • 20M x 110V EXTENSION LEAD 2.5MM DIA
  • PIGTAIL/TEE MANIFOLD
  • 47KG PROPANE GAS (MIN 3 BOTTLES)
  • 180MM EXHAUST FLUE 1 METER
  • 8M X 450MM HEATER DUCT (18"")
  • 450MM COUPLER/CONNECTING COLLAR
  • DUCT Y 450MM TO 2 X 450MM
  • DUCT Y 450MM TO 2 X 300MM
  • 8M X 300MM HEATER DUCT (12"")
  • 300MM COUPLER/CONNECTING COLLAR
  • PIGTAIL/TEE MANIFOLD
  • SPECIAL AIR DIFFUSER (SAD BOX)

Specifications

Nominal heating duty
65 kW
Air flow (max)
4,460 m3 /h
Typical heated area
1,625 m3
Power supply
230 /110 V 1 ph 50 Hz Run 4.1/9.0 A
Plug type
BS1363 13 A 230 V BS4343 16 A 110 V
Noise level (max)
72 dBA @ 1 metre
Weight
230 kg
Dimensions (L x W x H)
1,580 x 730 x 1,300 mm
Minimum flue
600 x 180 mm
Duct length (max)
24 metres
Duct diameter size
450 mm
Control
Manual (external controls available)
Fuel type
Propane
Fuel consumption
4.6 kg/h
Minimum cylinders
3 x 47 kg
