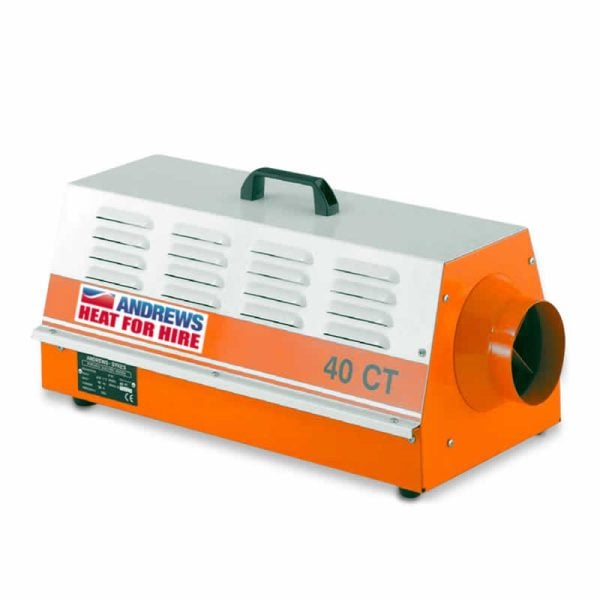

The CT 40 is a fan assisted 415-volt, 3-phase electric heater designed to supply heating for areas of up to 241m³ in size. This fully portable unit can generate a maximum airflow of 500m³/h and has a power consumption of 5.8kW/h, keeping running costs affordable. This unit has the potential to be ducted up to 3 meters away from the unit, providing heating to more inaccessible areas. Simple plug and play installation enables instantaneous set-up, with this particular unit designed for use in storerooms, workshops and garages.
Key Features
- Fully portablecan be easily positioned
- Robust constructionwill stand up to the rigour of industrial use
- Fully automatic operationcan run unattended
- Double skin constructionensures low surface temperatures
- Internal thermostatset desired temperature
- Economicalreducing running costs
- Easy installationplug in and switch on
- Quiet operationno sound disruption
Environments
- Offices
- Storerooms
- Workshops
- Marquees
- Shops
- Manufacturing facilities
- Art galleries
- Hotels
- Restaurants
- Archives
- Hospitals
- Data centres
- Agricultural
- Clothing manufacturers
Accessories
- RCD
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 100MM X 3M FLEXIBLE DUCT (MAX)
- DUCT CLIP
Specifications
- Nominal heating duty
- 9 kW
- Air flow (max)
- 450 m3/h
- Typical heated area
- 241 m3
- Power supply
- 415 V 3 ph + E 50 Hz Run 14 A
- Noise level (max)
- 57 dBA @ 1 metre
- Plug type
- BS4343 4 pin 16 A
- Generator
- 12.5 kVA
- Weight
- 19 kg
- Dimensions (L x W x H)
- 670 x 320 x 310 mm
- Duct length (max)
- 3 metres
- Duct size
- 120 mm
- Control
- Integral thermostat
- Power consumption
- 5.8 kW/h
