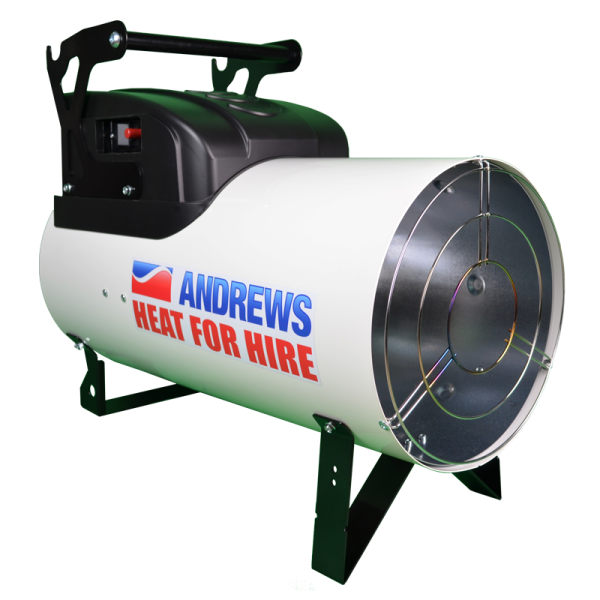

The G48 DV direct-fired heater is an economical unit designed for use in well-ventilated areas. Reliable while in use and easy to manoeuvre, the product is robustly constructed and suitable for deployment in garages, warehouses, factories and agricultural applications. This particular model of heater is capable of 100% efficient operation and has a maximum fuel consumption of just 2.98kg/h. With a nominal heating duty of up to 46.73 kW, the unit is ideal for spot heating and large areas of up to 1,100mยณ in size.
The G48 DV runs on propane gas and works with both an 110V or 230V power supply. Weighing just 13.6kg, this product can be constantly relocated if necessary, making it well-suited to a wide range of environments. Once stationed in a desired area, the manually-controlled heater can be commissioned almost instantly, generating large volumes of cost-efficient warm air.
Feature
| Plug type | BS1363 230v BS4343 16A 110v |
|---|---|
| Nominal heating duty | 46.73kW |
| Typical heated area | 1,100mยณ |
| Fuel type | LPG Propane only |
| Minimum cylinder(s) | 1 x 47 kg |
| Max. operating pressure | 1.5 bar |
| Dimensions (L x W x H) | 575 x 277 x 511mm |
| Fuel Consumption | 1.44/2.98 kg/h |
| Weight (kg) | 13.6 kg |
| Control | Manual |
| Noise level (max) | 63 dBA @ 5m |
| Power supply | 230/110V 1 ph 50Hz Run 0.7/1.3A |
| Air flow (max) | 1,250mยณh |
Pig Tail
Tee Piece
Workshops
Manufacturing facilities
Garages
Agricultural applications
Factories
Construction sites
