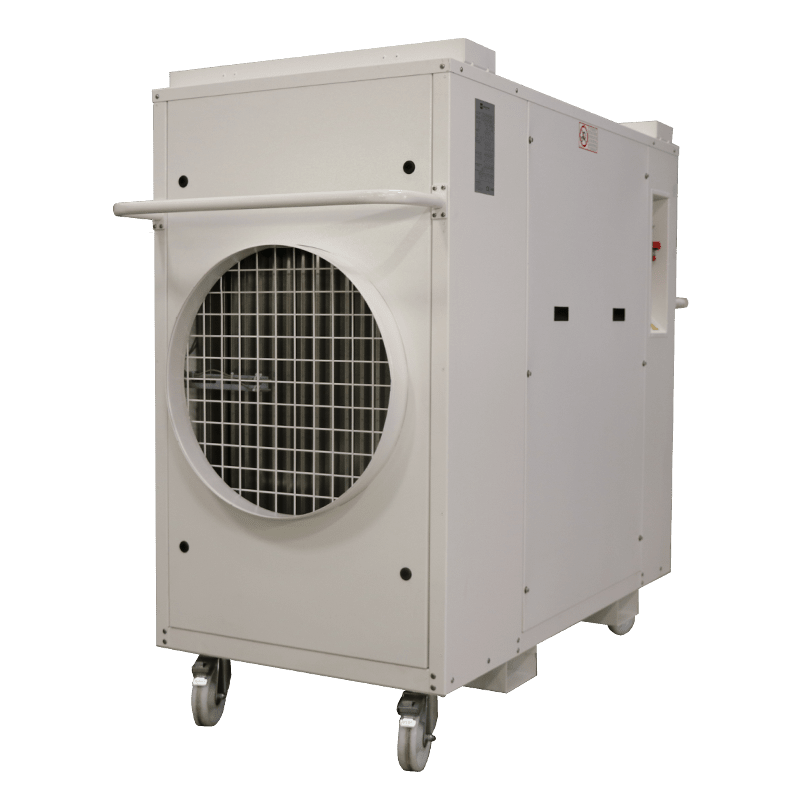

50kW Chiller FCU air handler
The 50kW FCU air handler is a lightweight and easily transportable product that can be connected to a customer’s existing chiller water system or an Andrews chiller, boiler or heat pump. Designed for use on both cooling and heating applications, this particular model features modern Inverter drive technology to provide users with a full range of speed settings as opposed to just one or two operational modes. Consuming just 1.8kW of power per hour, the 50kW FCU air handler is housed on wheels and can be delivered to site in a standard box van due to its slender frame. The unit’s recirculatory capabilities help maximise efficiency and it has been manufactured for use in a range of applications including hospitals, offices, marquees, exhibitions, archives, restaurants and many more.
Click image to Zoom
Features
- Easy installation – enabling swift connection in emergency scenarios
- Quiet operation – for deployment in noise-sensitive areas
- Inverter technology – flexible range of speed settings
- Economical performance – ensuring low running costs
- Safe and easy to use – allowing simplified operation
- Environmentally-friendly – enabling greater sustainability
- Reliable product – affording customer peace of mind
- Robust construction – use in testing applications
Environments
- Production lines
- Hospitals
- Shops
- Cold storage facilities
- Marquees
- Offices
- Factories
- Museums
- Server rooms
- IT Suites
- Food preparation areas
- Events
- Exhibition booths
- Computer rooms
- Archives
- Temporary accommodation
- Restaurants
- Warehouses
- Workshops
- Garages
Accessories
- 10M EXTENSION LEAD 5 PIN 32 AMP 415V 6MM DIA
- 20M EXTENSION LEAD 5 PIN 32 AMP 415V 6MM DIA
- CONDENSATE HOSE
- 600MM X 8M HD VENT DUCTING WITH CLAMP
- 6M X 50MM HOSE WITH BAUER CONNECTIONS
Specifications
- Nominal cooling duty
- 50 kW
- Nominal heating duty
- 100 kW
- Air flow (max)
- 11,500 m3/h
- Power supply
- 415 V 3 ph 50 Hz N+E Run 6 A
- Plug type
- BS4343 5 Pin 32 A
- Noise level (max)
- 44 dBA @ 1 metre
- Weight
- 330 kg
- Dimensions (L x W x H)
- 1,600 x 790x 1,510 mm
- Duct length (max)
- 40 metres
- Duct size
- 1 x 600 mm
- Average power consumption
- 1.8 kW/h
- Integral condensate pump
- Yes
- Fan speed controller
- Yes (Invertia drive technology)
- Water connection
- 50 mm (2") bauer
