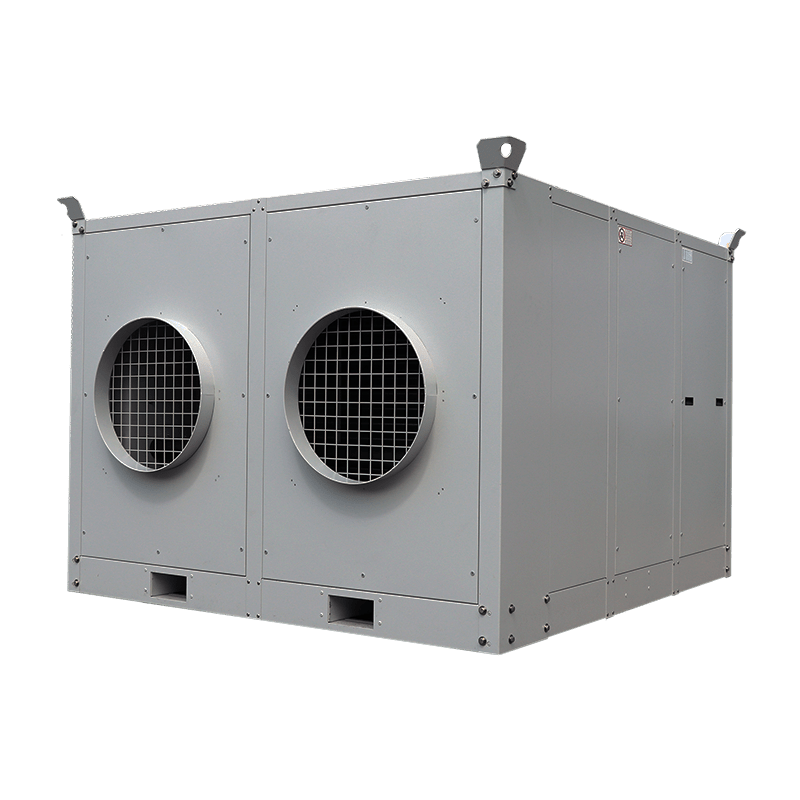

The 150kW series 2 air handler can connect to all boilers in our expansive fleet and is also compatible with an existing water circuit. Fitted with an internal condensate pump, the 150kW series 2 air handler provides nominal heating duties of up to 300kW while its stackable design guarantees a reduced footprint in instances where two or more units are required. This air handler can be fitted with up to 48 metres of ducting if required, providing greater flexibility in situations where site access is restricted. Our 150kW series 2 air handler also features market-leading Invertia technology for enhanced air flow control, providing a greater degree of flexibility than is possible with units available elsewhere.
Feature
connection in emergency scenarios
noise-sensitive areas
for unobtrusive deployment
low running costs
simplified operation
greater sustainability
peace of mind
testing applications
Nominal cooling duty | 150 kW |
---|---|
Nominal heating duty | 300 kW |
Air flow (max) | 22,200 m3/h |
Power supply | 415 V 3 ph 50 Hz N+E Run 10 A |
Plug type | BS4343 5 pin 32 A |
Noise level (max) | 69 dBA @ 1 metre |
Weight | 1,100 kg |
Dimensions (L x W x H) | 2,200 x 2,100x 1,700 mm |
Duct length (max) | 48 metres |
Duct size | 2 x 600 mm |
Average power consumption | 3.1 kW/h |
Integral condensate pump | Yes |
Fan speed controller | Yes (Inverter drive technology) |
Water connection | 50 mm / 2" bauer |
