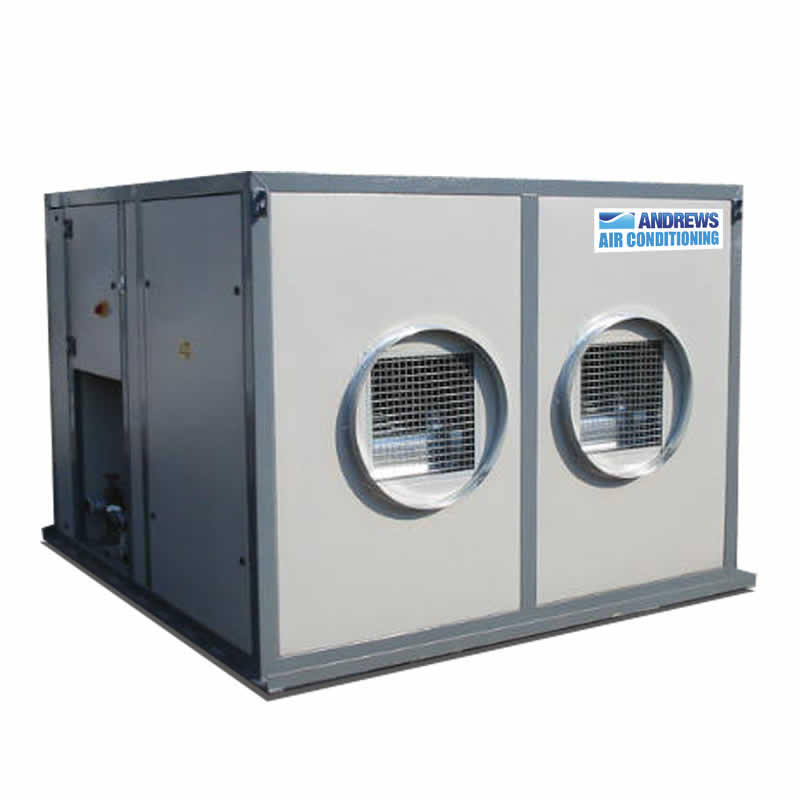

150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.

For large spaces and process cooling

The 150kW Air Handling unit cool/heat an area of 3,624 m3 - 127,950 ft3
150 kW Air Handling unit dimensions: 1,980 x 2,260 x 1,700 mm and weighs 934kg

Features
  • Safe and easy to use
  • Economical
  • Fully portable
  • Very reliable
  • Robust construction
  • Quiet operation
  • Fully automatic operation
Environments
  • Food preparation areas
  • Shops
  • Cold storage facilities
  • Marquees
  • Offices
  • Events and Exhibitions
  • Computer rooms
  • Archives
  • Temporary accommodation
Air flow (max)
20160 m3/h
Duct length (max)
50 metres
Power supply
415 V 3 ph 50 Hz N+E Run 20 A/hr
Duct size
2 x 600 mm
Noise level (max)
84 dBA @ 1 metre
Water connection
50 mm / 2" Bauer
Weight
934 kg
Nominal cooling capacity
150 kW 511,800 btu
Control
Manual
Nominal heating capacity
300 kW 1,023,600 btu
Plug type
BS4343 5 Pin 32 A
Dimensions (L x W x H)
2260 x 1980 x 1700 mm
Average power consumption
14.3 kW/h
