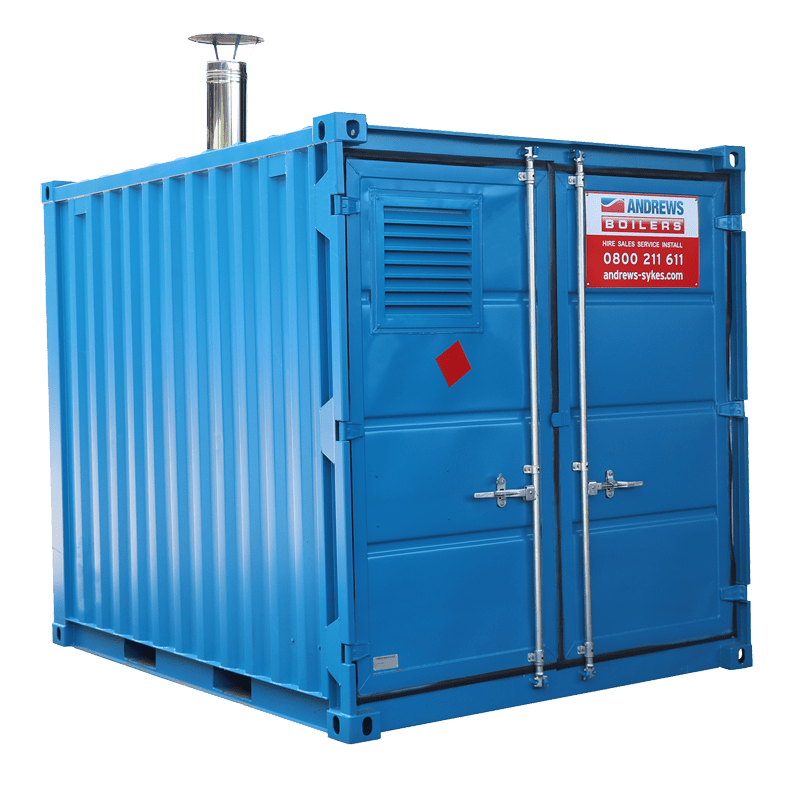

The 250kW site container Boiler, provides a fast and effective solution to a wide range of applications requiring heat and hot water. These packaged boilers are housed in vandal proof sound and thermally insulated steel containers.
dimensions - 250kW site container Boiler (w/l/h) 1,310 X 2,030 X 1,780mm and weighs - 980kg
Features
|
|
- Nominal heating duty
- 250 kW 88300 btu
- Dimensions (L x W x H)
- 3000 x 2400 x 2600 mm (without)
- Power supply
- 240 V 1 ph N+E 50 Hz Run 10 A
- DHW connections (recirculation)
- 25 mm / 1" stortz connector
- Noise level (max)
- 45 dBA @ 10 metres
- Fuel consumption (max)
- 31 l/h
- Weight (kg)
- 2,000 kg
- Natural gas connection
- 32 mm / 11/4" BSP
- Plug type
- BS4343 16 A
- Control
- Automatic thermostat
- Average power consumption
- 2.4 kW/h
- DHW connections (flow / return)
- 50 mm / 2" stortz connector
- Fuel type
- Gas Oil (natural gas burner available)
- LPHW connections (flow / return)
- 50 mm / 2" stortz connector
- 10M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
- 20M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
- 1000L BUNDED FUEL TANK
- 2000L BUNDED FUEL TANK
- 2800L BUNDED FUEL TANK
- 3000L BUNDED FUEL TANK
- 5M HP FUEL LINE
- GAS OIL
- NATURAL GAS OPTION
- STORTZ HOSE 50MM LPHW
- STORTZ HOSE 50MM DHW
- STORTZ HOSE 25MM DHW RECIRCULATION
- STORTZ CONNECTOR 50MM ALLOY (LPHW)
- STORTZ CONNECTOR 50MM BRASS (DHW)
- STORTZ CONNECTOR 25MM BRASS (DHW) RECIRC
- HEAT EXCHANGER
- PRESSURISATION UNIT 230V (LPHW)
- FAN COIL / AHU
