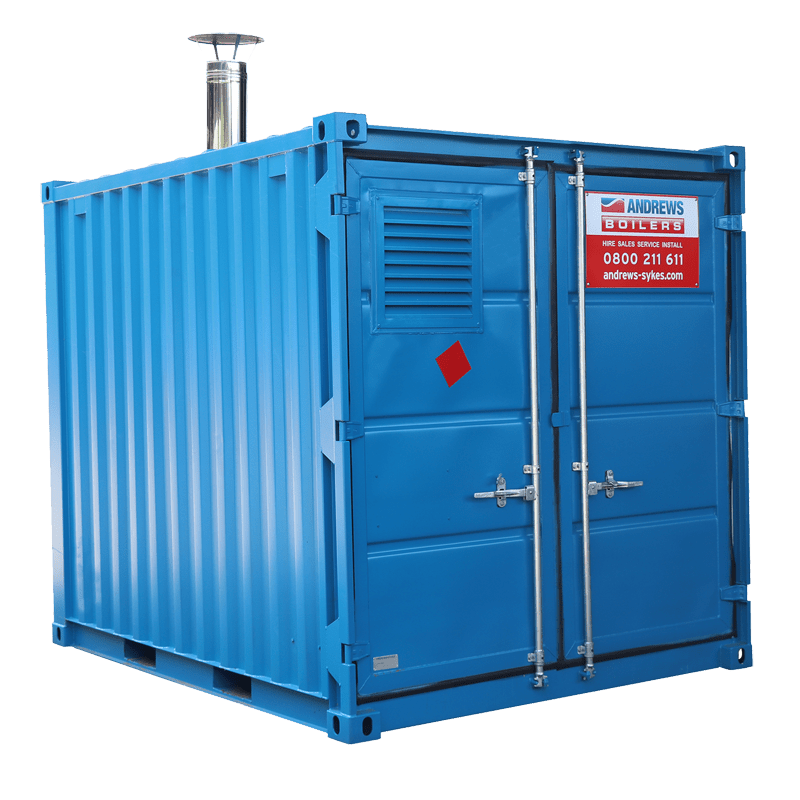

The 500kW site boiler is one of the larger containerised units in our hire fleet and has been designed for use in a broad range of applications including marquees, leisure centres, care homes, hotels, hospitals, warehouses and factories. This hard-wearing unit is packaged in a vandal and sound-proof container for maximum convenience and features twin circuit technology to provide high capacities of heating and hot water. Our 500kW boiler can be used as a complete standalone solution, to supersede a faulty boiler or act as a supplementary solution in instances where greater capacities are necessary.
Feature
hot water for a variety of applications
supplementary use or complete replacement
3-phase 415 V power supply for simple set-up
to existing systems for quick installation
during planned maintenance
for multitude of environments
for discreet deployment
up to 500kW achievable
| Nominal heating duty | 500 kW |
|---|---|
| Power supply | 415 V 3ph N+E 50 Hz Run 16A |
| Plug type | BS4343 5 pin 32 A |
| Noise level | 45 dBA @ 10 metres |
| Weight | 4,000 kg |
| Dimensions (L x W x H) | 3,000 x 2,400 x 2,600 mm |
| Fuel type | Gas Oil/Natural Gas |
| Max fuel consumption | 42 l/h Gas Oil |
| LPHW connections | 80 mm (3") storz coupling |
| DHW connections | 50 mm (2") storz coupling |
| DHW recirculation connections | 25 mm (1") storz coupling |
| Natural gas connections | 2" BSP coupling |
10M x 415V 32AMP EXTENSION LEAD 6MM DIA
1000L BUNDED FUEL TANK
2000L BUNDED FUEL TANK
2800L BUNDED FUEL TANK
3000L BUNDED FUEL TANK
5M HP FUEL LINE
GAS OIL
NATURAL GAS OPTION
STORTZ HOSE 75MM LPHW
STORTZ HOSE 50MM DHW
STORTZ HOSE 25MM DHW RECIRCULATION
STORTZ CONNECTOR 75MM ALLOY (LPHW)
STORTZ CONNECTOR 50MM BRASS (DHW)
STORTZ CONNECTOR 25MM BRASS (DHW) RECIRC
HEAT EXCHANGER
PRESSURISATION UNIT 230V (LPHW)
FAN COIL / AHU
