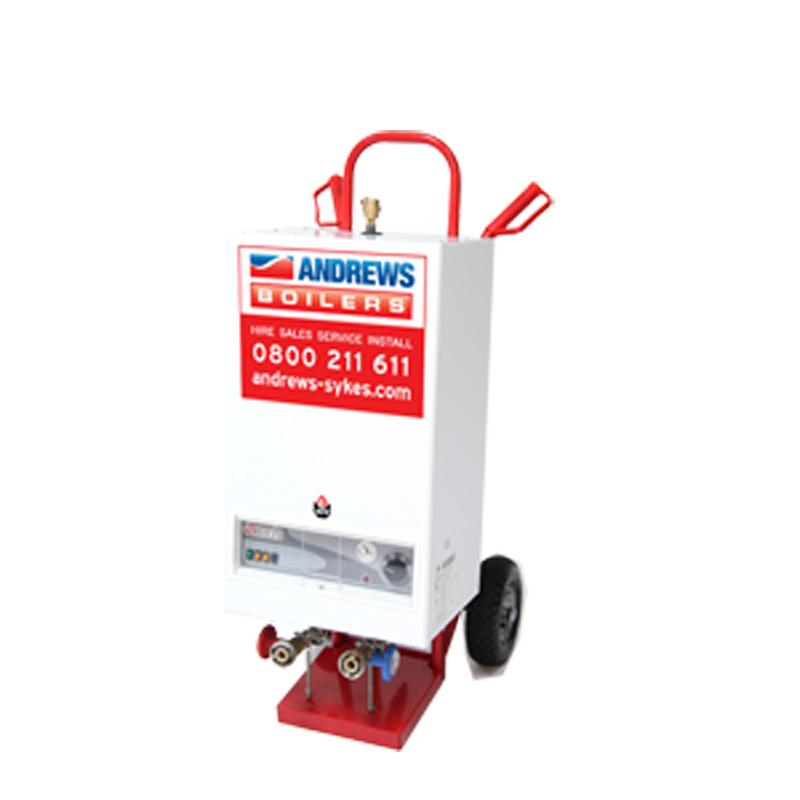

These robust electric boilers offer a reliable solution for generating heating and hot water, requiring only a 415V 32amp three phase power supply in order to function. Easily connected to existing systems, the 22kW electric boiler is extremely efficient and can be installed in tight spaces due to its small dimensions and excellent mobility courtesy of a wheeled sack truck mounting configuration. This model is suitable for a multitude of applications including heating only and smaller hot water services via our plate heat exhanger range. Primarily designed for use on underfloor heating projects and screed curing to complete operational systems, the 22kW electric boiler features a fully controllable thermostat to enable gradual temperature rises when required. These units feature stage two electric elements to conserve energy and limit power consumption, keeping running costs low. Ideal for temporary breakdown replacements, the 22kW boiler is equally suitable for use on early stage construction projects, manufacturing applications and in the events industry.
Key Features
- Extremely lightweightfor easy manoeuvrability
- Seamless connection to existingsystems for quick installation
- Instant heating and hot waterfor a variety of applications
- Highly efficient forcost-effective operation
- Runs on a 3-phase 415 V powersupply for simple set-up
- Small dimensions enabling usein space-restricted areas
- High maximum working temperaturefor multitude of environments
- Suitable for planned maintenanceor urgent projects
Environments
- Building Sites
- Garages
- Shops
- Food prep areas
- Retail and car showrooms
- Clothing manufactures
- Exhibition halls
- Sports halls and leisure centres
- Marquees
- Agricultural Locations
- Factories
- Warehouses
Accessories
- 10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
- 20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
- STORTZ HOSE 25MM LPHW
- STORTZ CONNECTOR 25MM
- PLATE HEAT EXCHANGER
- BOOSTER PUMP
- BUFFER TANK
Specifications
- Nominal heating duty
- 22 KW
- Power supply
- 415 V 3ph N+E Run 31 A
- Plug type
- BS4343 5 pin 32 A
- Noise level
- 35 dBA @ 10 metres
- Weight
- 50 Kg
- Dimensions (L x W x H)
- 600 x 550 x 1,100 mm
- Fuel type
- Electric
- Average power consumption
- 14.4/21.5 kW
