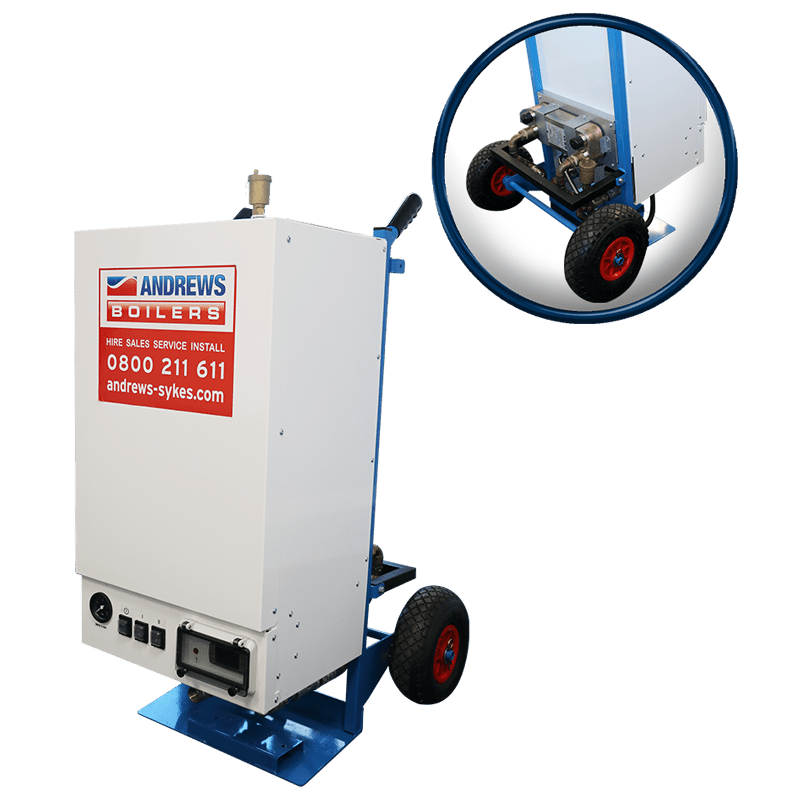

These 22kW electric boilers offer a compact all-in-one heating solution that features a built-in heat exchanger for simplified installation. The unit can be easily connected to an existing system while its digital controller ensures more accurate temperature control than other models available elsewhere. The 22kW boiler’s built-in heat exchanger allows the client’s system water to pass through the heat exchanger without mixing with the water inside the boiler. Energy efficient electric elements limit power consumption and conserve energy to keep running costs low. This boiler is most commonly used as an underfloor heating solution but also very suitable for screed drying, central heating and hot water cylinders.
Key Features
- Built-in heat exchanger providingall-encompassing solution
- Extremely lightweight foreasy manoeuvrability
- Seamless connection to existingsystems for quick installation
- Instant heating for a varietyof applications
- Highly efficient forcost-effective operation
- Runs on a 3-phase 415 V powersupply for simple set-up
- Small dimensions enabling use inspace-restricted areas
- High maximum working temperaturefor multitude of environments
- Digital controller for accuratetemperature adjustments
Environments
- Underfloor heating
- Garages
- Shops
- Food prep areas
- Retail and car showrooms
- Building sites
- Exhibition halls
- Sports halls and leisure centres
- Marquees
- Agricultural Locations
- Factories
- Warehouses
Accessories
- 10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
- 20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
- STORTZ HOSE 25MM LPHW
- STORTZ CONNECTOR 25MM
- BOOSTER PUMP
- BUFFER TANK
Specifications
- Nominal heating duty
- 22 KW
- Power supply
- 415 V 3ph N+E Run 31 A
- Plug type
- BS4343 5 pin 32 A
- Noise level
- 35 dBA @ 10 metres / 48 LWA @10 meters
- Weight
- 49 Kg
- Dimensions (L x W x H)
- 630 x 650 x 1,072 mm
- Fuel type
- Electric
- Average power consumption
- 9.6kW/h
