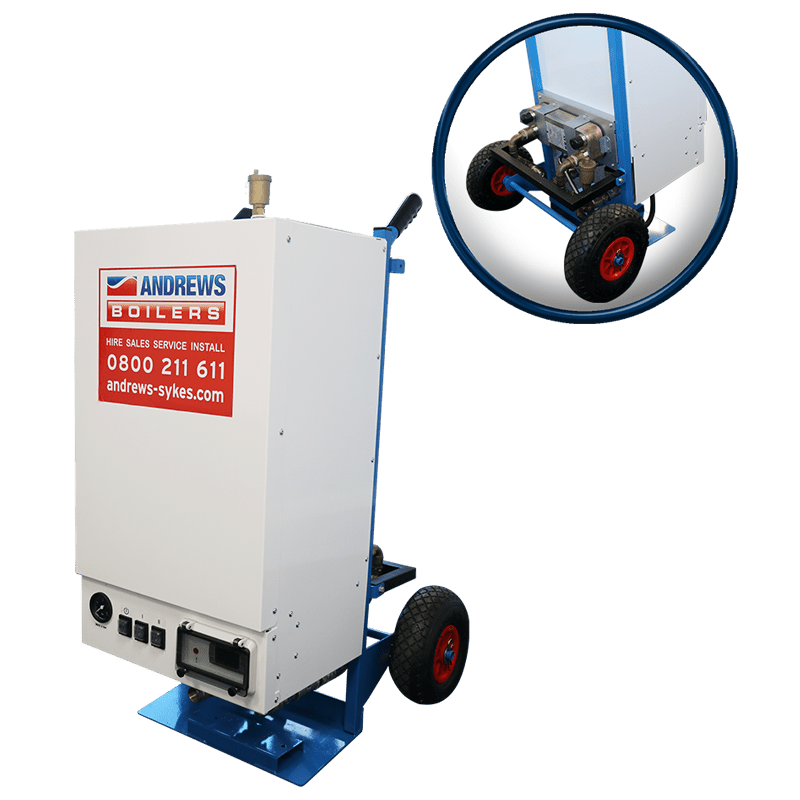

Our 36kW electric boiler offers a compact, portable and all-in-one solution featuring a built-in heat exchanger for added convenience. The product can be connected to an existing system in seconds and has an advanced digital controller to guarantee accurate temperature control. The boilerโs heat exchanger allows the clientโs system water to pass through without coming into contact with the water inside the boiler. Energy efficient electric elements limit power consumption and conserve energy, guaranteeing economical operation and lower running costs. The 36kW boiler has been specifically designed for underfloor heating solution but also very suitable for screed drying, central heating and hot water cylinders.
Feature
providing all-encompassing solution
for easy manoeuvrability
to existing systems for quick installation
for a variety of applications
for cost-effective operation
power supply for simple set-up
enabling use in space-restricted areas
working temperature for multitude of environments
for accurate temperature adjustments
Nominal heating duty | 36 kW |
---|---|
Power supply | 415 V 3 ph N+E Run 55 A |
Plug type | BS4343 5 pin 63 A |
Noise level | 37 dBA @ 10 metres49 [br] LWA @10 meters |
Weight | 67.6 kg |
Dimensions (L x W x H) | 630 x 650 x 1,120 mm |
Fuel type | Electric |
Average power consumption | 17.1 kW/h |
10M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
20M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
STORTZ HOSE 25MM LPHW
STORTZ CONNECTOR 25MM
BOOSTER PUMP
BUFFER TANK
