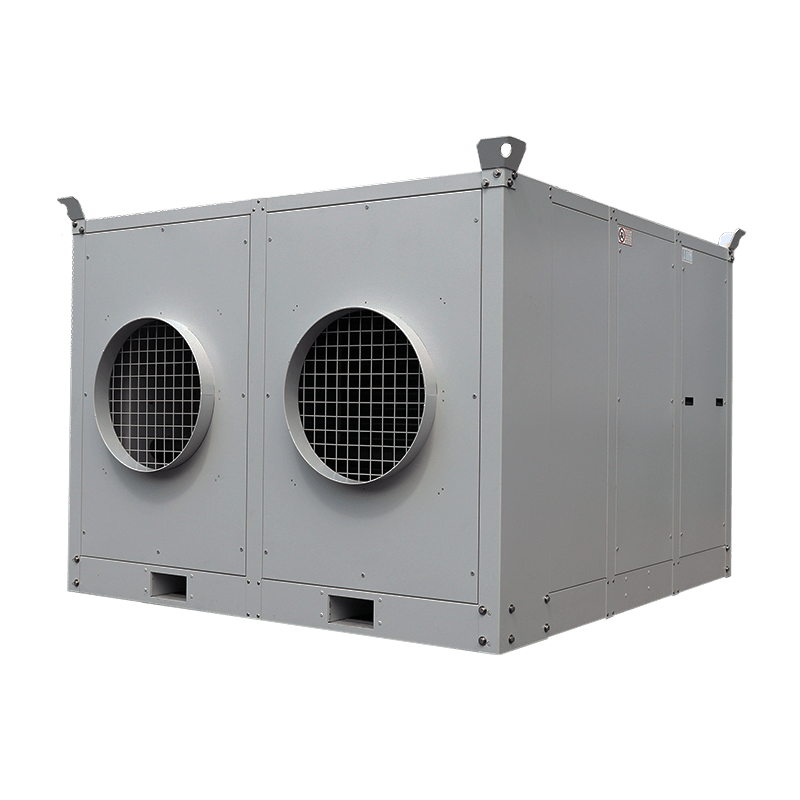

150kW series 2 chiller air handler

  • Nominal cooling duty 150 kW
  • Nominal heating duty 300 kW
  • Air flow (max) 22,200 m3/h

Product Features

Easy installation enabling swift connection in emergency scenarios

Quiet operation for use in noise-sensitive areas

Stylish design for unobtrusive deployment

Economical performance ensuring low running costs

Safe and easy to use allowing simplified operation

Environmentally-friendly enabling greater sustainability

Reliable product affording customer peace of mind

Robust construction facilitating use in testing applications


The 150kW series 2 air handler can connect to all chillers in our expansive fleet and is also compatible with an existing chilled water circuit. Fitted with an internal condensate pump, the 150kW series 2 air handler provides a nominal cooling duty of up to 150kW while its stackable design guarantees a reduced footprint in instances where two or more units are required. This air handler can be fitted with up to 48 metres of ducting if required, providing greater flexibility in situations where site access is restricted. Our 150kW series 2 air handler also features market-leading Invertia technology for enhanced air flow control, providing a greater degree of flexibility than is possible with units available elsewhere.


Nominal cooling duty 150 kW
Nominal heating duty 300 kW
Air flow (max) 22,200 m3 /h
Power supply 415 V 3 ph 50 Hz N+E Run 10 A
Plug type BS4343 5 Pin 32 A
Noise level (max) 69 dBA @ 1 metre
Weight 1,100 kg
Dimensions (L x W x H) 2,200 x 2,100x 1,700 mm
Duct length (max) 48 metres
Duct size 2 x 600 mm
Average power consumption 3.1 kW/h
Integral condensate pump Yes
Fan speed controller Yes (Inverter drive technology)
Water connection 50 mm (2″) bauer
