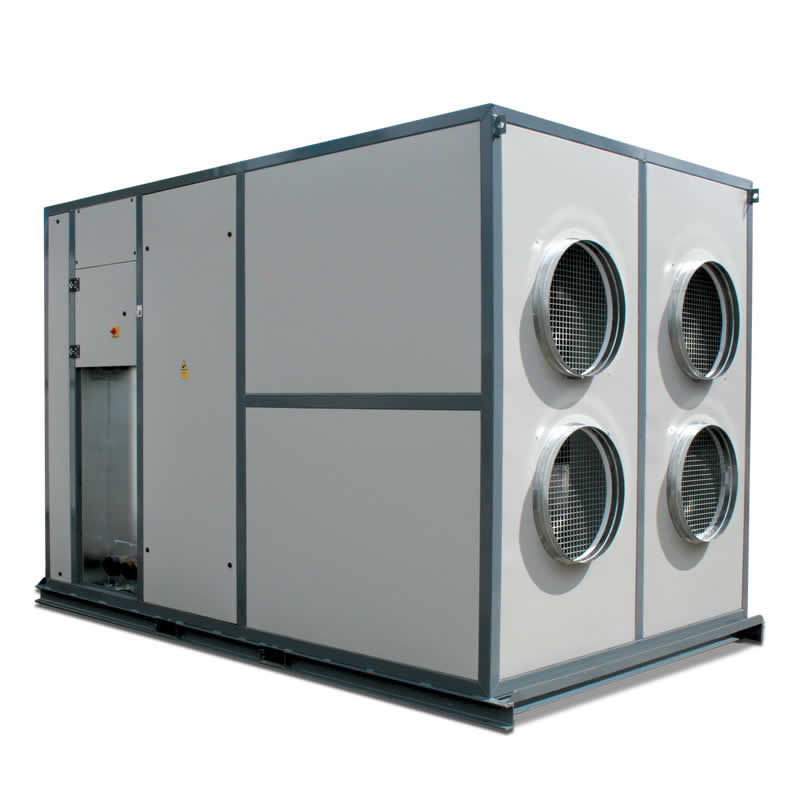

300/600kW Boiler Air Handler
300 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with an internal condensate pump. A full range of ancillaries are available, including insulated flexible duct, plenum chambers, extraction fans and condensate hose.
- Full Details
- Features / Environments
- Specifications
300 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with an internal condensate pump. A full range of ancillaries are available, including insulated flexible duct, plenum chambers, extraction fans and condensate hose.
The 300/600kW Air Handling unit Nominal cooling capacity 300 kW 1,023,600 btu. The 300/600kW Air Handling unit Nominal heating cacity 600kW 2,047,200 btu
300/600 kW Air Handling unit dimensions: 3,780 x 2,340 x 2,590 mm and weighs 2,150 kg
Features
|
|
Environments
|
|
- Power supply
- 415 V 3 ph 50 Hz N+E Run 30 A/hr
- Duct length (max)
- 50 metres
- Noise level (max)
- 81 dBA @ 5 metres
- Duct size
- 4 x 600 mm
- Weight (kg)
- 2,150 kg
- Water connection
- 100 mm / 4" bauer
- Plug type
- BS4343 5 Pin 32 A
