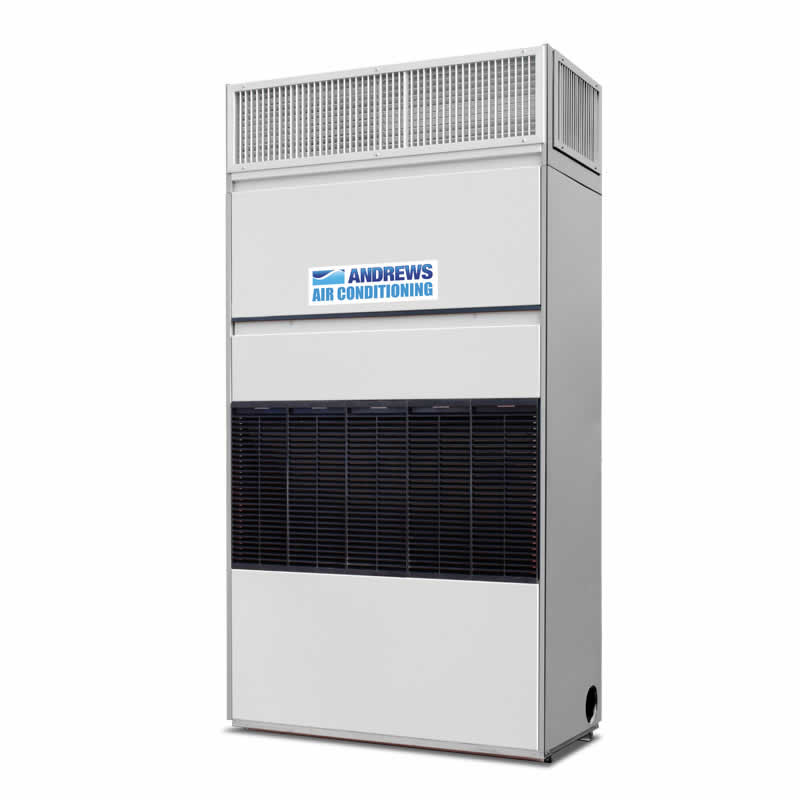

30 kW Fan Coil unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
For large spaces and process cooling
The 30kW Fan Coil will cool/heat an area of 1,049 m3 - 22,178 ft3
The 30kW Fan Coil dimensions are 500 x 1,050 x 1,700 mm + 360 mm (with diffuser) and weighs 140kg
Features
|
|
Environments
|
|
- Nominal cooling duty
- 30 kW 120360 btu
- Average power consumption
- 920 W/h
- Air flow (max)
- 4197 m3/h
- Nominal heating duty (HP version)
- 60 kW 204,720 btu
- Power supply
- 230 V 1 ph 50 Hz Run 4 A
- Water connection
- 32 mm / 11/4" camlock
- Noise level (max)
- 58.5 dBA @ 1 metre
- Condensate
- Pumped
- Weight (kg)
- 140 kg
- Dimensions (L x W x H)
- 1050 x 500 x 2060 mm (with top box)
- Plug type
- BS1363 13 A
- Control
- Automatic thermostat
- 20M x 230V EXTENSION LEAD 2.5MM DIA
- CONDENSATE HOSE
- 1.25 BORE HOSE PER METER (WITH CAMLOCKS)
