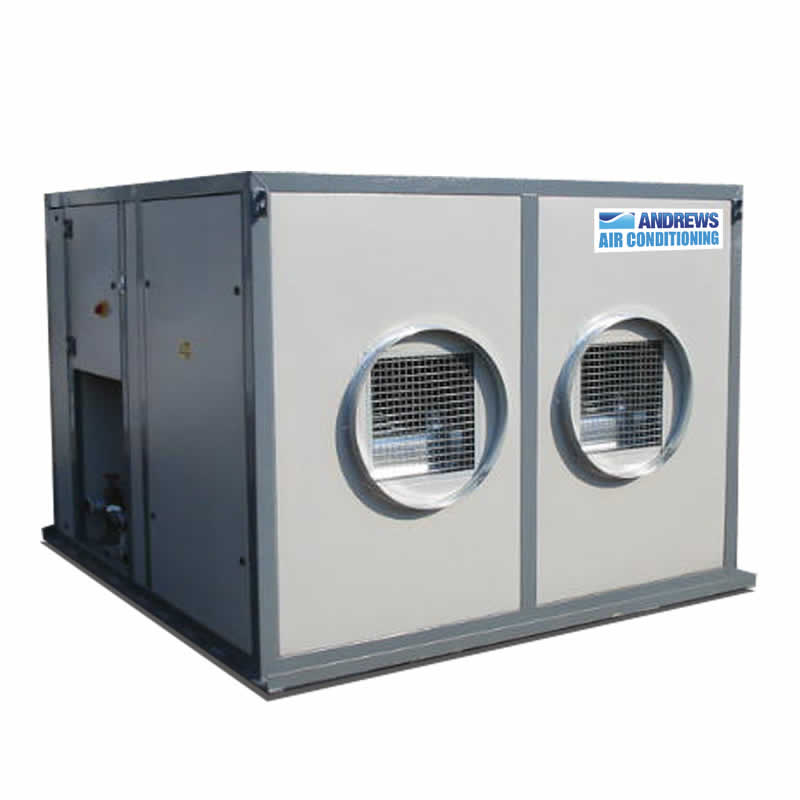

150 kW Air Handling unit - Fan Coil
150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units have internal condensate pumps.
- Full Details
- Features / Environments
- Specifications
- Accessories
150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
For large spaces and process cooling
The 150kW Air Handling unit cool/heat an area of 3,624 m3 - 127,950 ft3
150 kW Air Handling unit dimensions: 1,980 x 2,260 x 1,700 mm and weighs 934kg
Features
|
|
Environments
|
|
- Nominal heating duty
- 300 kW 1023600 btu
- Average power consumption
- 14.3 kW/h
- Nominal cooling duty
- 150 kW 511800 btu
- Duct length (max)
- 50 metres
- Air flow (max)
- 20160 m3/h
- Duct size
- 2 x 600 mm
- Power supply
- 415 V 3 ph 50 Hz N+E Run 20 A/hr
- Water connection
- 50 mm / 2" bauer
- Noise level (max)
- 84 dBA @ 1 metre
- Condensate
- Pumped
- Weight (kg)
- 934 kg
- Dimensions (L x W x H)
- 2260 x 1980 x 1700 mm
- Plug type
- BS4343 5 Pin 32 A
- Control
- Manual
- 10M EXTENSION LEAD 5 PIN 32 AMP 415V 6MM DIA
- CONDENSATE HOSE
- 600MM X 8M HD VENT DUCTING WITH CLAMP
- 6M X 50MM HOSE WITH BAUER CONNECTIONS
