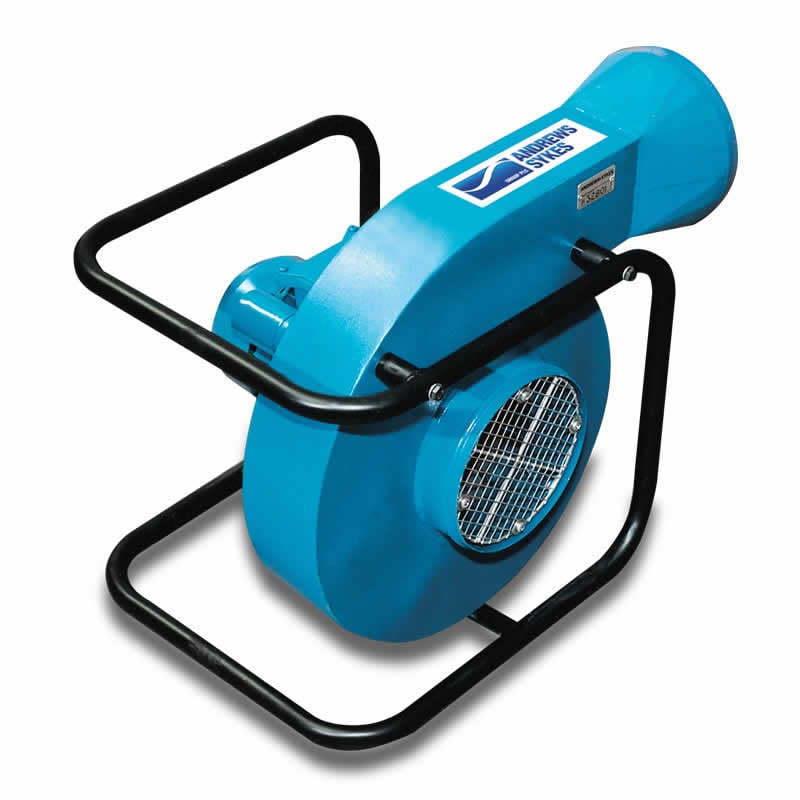

FV100 DV ventilation extraction fan
The FV100 is a robust, high-powered ventilation fan designed to remove dangerous fumes, dust particles and vapours. It has a maximum ducted length of up to 10m and can be linked to heaters, boilers and chillers to distribute warm or cool air over large areas.
Summary
Features & Environments
Specifications
Accessories
Used to provide confined spaces with fresh air, the FV100 DV fan has an average power consumption of just 1.15kW/h. The product has a maximum air flow of up to 1,700m³/h, making it ideal for a wide range of environments and processes.
Weight just 27kg, the unit’s relatively small dimensions and slender design allows flexible deployment - even in areas where space may be limited.
This particular model can run on either a 230V or 110V power supply and is controlled manually.
Features
|
|
Environments
|
|
- Air flow (max)
- 1700 m3/h
- Duct length (max)
- 10 metre
- Power supply
- 230/100V 1 ph 50 Hz Run 5/10.5 A
- Duct size
- 200 mm
- Noise level (max)
- 78.6 dBA @ 1 metre
- Dimensions (L x W x H)
- 605 x 440 x 535 mm
- Weight (kg)
- 27 kg
- Control
- Manual
- Plug type
- BS1363 230 V BS4343 16 A 100V
- Air pressure (max)
- 100 mm / 4" wg
- Average power consumption
- 1.15 kW/hr
- RCD
- 230V / 110V 5KVA CONTINIOUS TRANSFORMER
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 20M x 230V EXTENSION LEAD 4MM DIA
- 10M x 110V EXTENSION LEAD 2.5MM DIA
- 20M x 110V EXTENSION LEAD 4MM DIA
- 200MM X 8M HD VENT DUCTING WITH CLAMP
- FILTER BAG
