FV300 ventilation extraction fan

The FV300 is a rugged, high-powered ventilation fan designed to extract dangerous fumes, dust particles and vapours from enclosed areas. Used to provide confined spaces with fresh air, the wheel-mounted FV300 fan has an average power consumption of just 2kW/h and a maximum air flow of up to 4,930m³ per hour. These specifications render the product an ideal solution for a wide range of environments including tank cleaning, tunnel construction and the removal of welding fumes.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

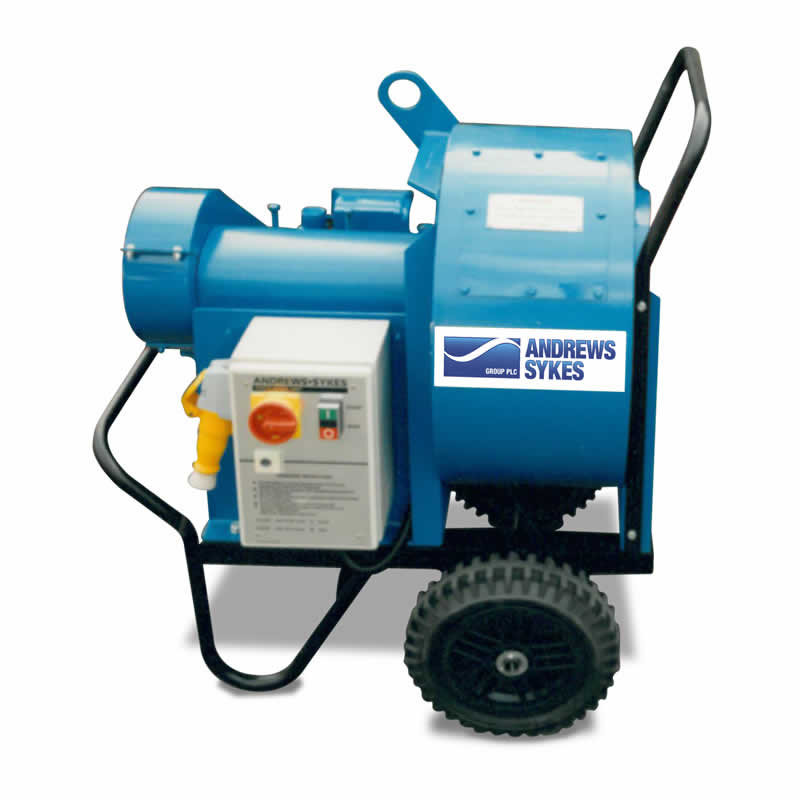

FV300 Angle View Click image to Zoom

Features

  • Easy installation – plug in and switch on
  • Quiet operation – for deployment in noise-sensitive areas
  • Low energy consumption – only 2 kW/h
  • Economical performance – ensuring low running costs
  • Safe and easy to use – allowing simplified operation
  • Standard power supply – suitable for all types of applications
  • Reliable product – affording customer peace of mind
  • Fully portable – wheel mounted and easy to move

Environments

  • Removal of welding fumes
  • Demolition
  • Tank cleaning
  • Agriculture
  • Sewer maintenance
  • Tunnel construction
  • Construction
  • Paint work
  • Confined space working
  • Elimination of smoke and dust

Accessories

  • RCD
  • 10M x 110V EXTENSION LEAD 2.5MM DIA
  • 20M x 110V EXTENSION LEAD 6MM DIA
  • 300MM X 8M HD VENT DUCTING WITH CLAMP
  • FILTER BAG

Specifications

Air flow (max)
4,930 m3/h
Power supply
110 V 1 ph 50 Hz Run 17 A
Plug type
BS4343 32 A 110 V
Generator size
7 kVA min
Transformer size
5 kW min
Duct length (max)
40 metres
Duct size
300 mm
Noise level (max, with duct)
86.9 dBA @ 1 metre
Weight
130 kg
Dimensions (L x W x H)
920 x 720 x 1,045 mm
Control
Manual
Average power consumption
2 kW/h
