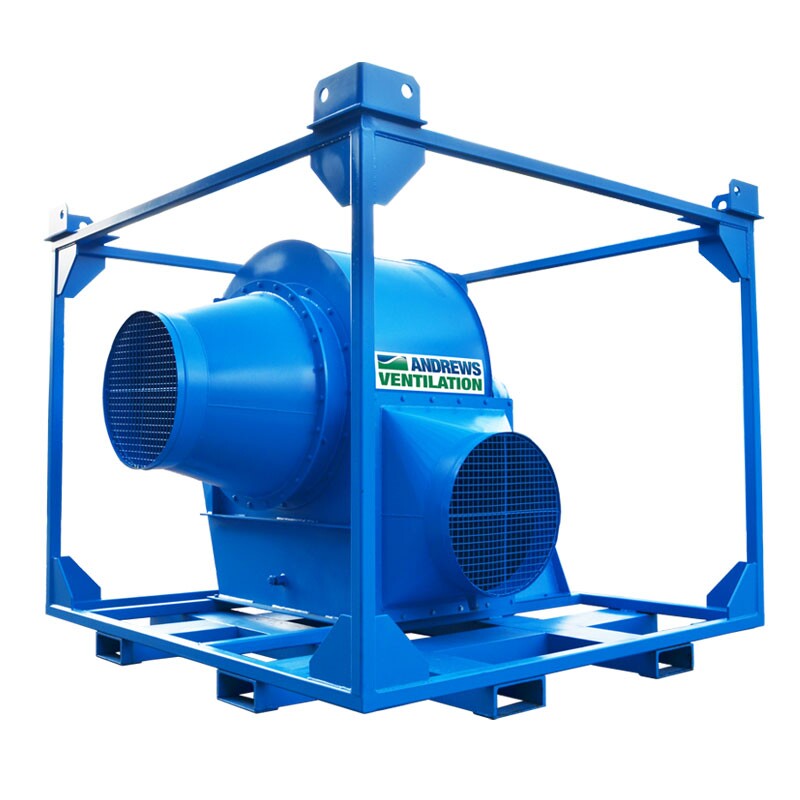

FV1800 ventilation extraction fan
The FV1800 fan unit features all popular components of our existing FV range and offers clients massive air flows of up to 38,000m³ for every hour of operation.
Designed to aid the removal of dangerous fumes, dust particles or provide clean air for large applications, this particular model provides clients with a high capacity solution that negates the need to deploy a large number of smaller units.
Features & Environments
Specifications
Accessories
Features
|
|
Environments
|
|
- Air flow (max)
- 38,000 m3/h
- Duct length (max)
- 40 metres
- Power supply
- 415 V 3 ph 50 Hz Run 28 A
- Generator size
- 30 kVA
- Noise level (max)
- 80 dBA @ 1 metre
- Duct size
- Inlet 600mm, Outlet 600mm
- Weight (kg)
- 1110kg
- Dimensions (L x W x H)
- 2,208 x 2,090 x 2,005 mm
- Plug type
- BS4343 3 ph 5 pin 415 V 32 A
- Control
- Manual
- Average power consumption
- 11.6kW/h
- 10M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
- 20M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
- 600MM X 8M HD VENT DUCTING WITH CLAMP
