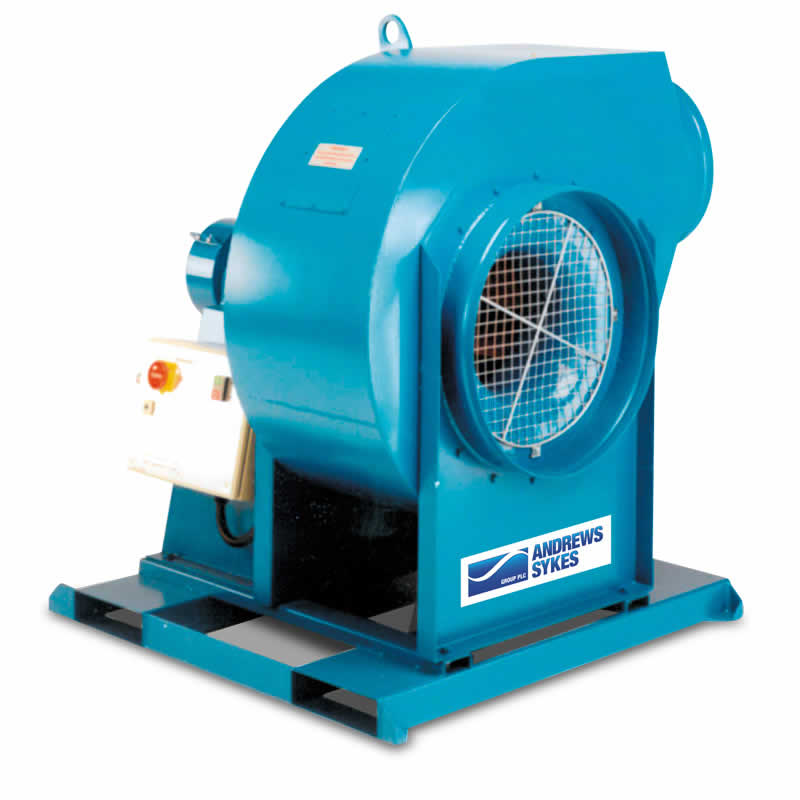

FV900 ventilation extraction fan
The FV900 is a robust, high-powered ventilation fan designed to remove dangerous fumes, dust particles and vapours. It has a maximum ducted length of up to 40m and can be linked to heaters, boilers and chillers to distribute warm or cool air over large areas.
Summary
Features & Environments
Specifications
Accessories
Used to provide confined spaces with fresh air, the FV900 fan has an average power consumption of just 7.1kW/h. The product has a maximum air flow of up to 16,500m³/h, making it ideal for a wide range of environments and processes.
As a high-capacity unit weighing approximately 295kg, the FV900 has been designed to provide a large circulation of cool air even for industrial-sized applications.
This particular model can run on a 415V power supply and is controlled manually.
Features
|
|
Environments
|
|
- Air flow (max)
- 16500 m3/h
- Duct length (max)
- 40 metres
- Power supply
- 415V 1 ph 50 Hz Run 10 A
- Generator size
- 35 kVA
- Noise level (max)
- 86.6 dBA @ 1 metre
- Duct size
- Inlet 600 mm Outlet 450mm
- Weight (kg)
- 295 kg
- Dimensions (L x W x H)
- 1230 x 1170 x 1500 mm
- Plug type
- BS4343 3ph 5 pin 415V 16 A
- Control
- Manual
- Average power consumption
- 7.1 kW/hr
- Air pressure (max)
- 100 mm / 4" wg
- 10M x 5 PIN 16 AMP 415V EXTENSION LEAD 4MM DIA
- 20M x 5 PIN 16 AMP 415V EXTENSION LEAD 4MM DIA
- 450MM X 8M HD VENT DUCTING WITH CLAMP
- 600MM X 8M HD VENT DUCTING WITH CLAMP
