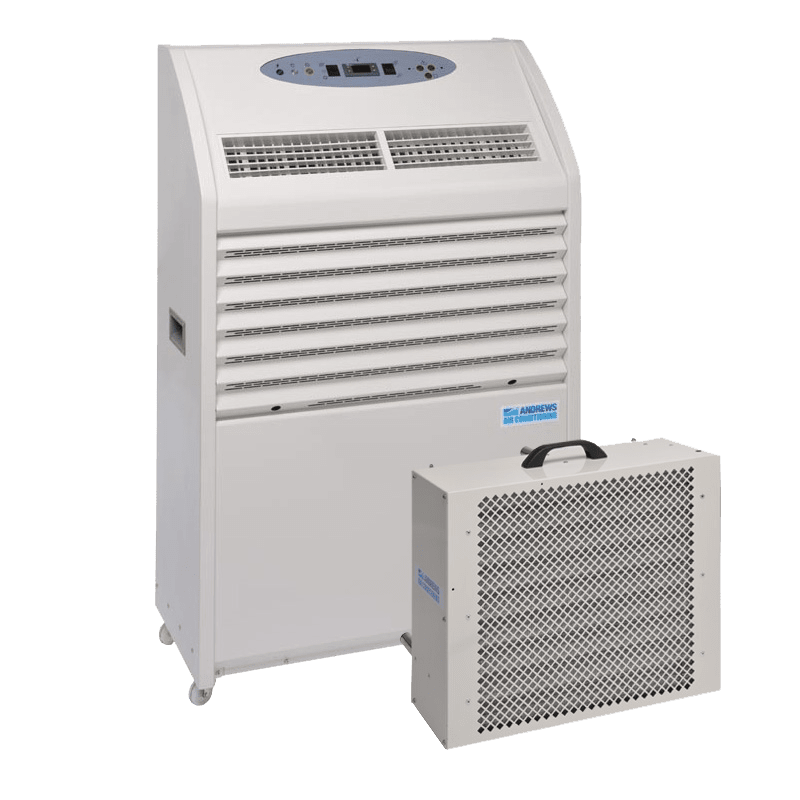

The PAC 22 Series 3 is one of Europe’s most popular split portable air conditioners. Strong, stylish and easy to install, the PAC 22 is a unit of choice worldwide with a nominal cooling duty of 6.47kW – rendering it suitable for cooling areas of up to 156m3. This market leading air conditioner comes complete with digital display, temperature settings going as low as 10 ̊C, non-leak couplings and a two-speed fan to vent out large amounts of cool air. The portable unit’s heat exchanger is connected to the room unit by a line duct outlet and comes with 5-metre lengths of line. The PAC 22 Series 3 is perfect for applications such as large offices, server rooms, storerooms and hospitals.
Feature
for versatility of location
down to as low as 10 ̊C
6.47kW from 13amp power supply
low sound disruption in public areas
simple to operate and function
for simple and fast installation
Can run unattended
full control over desired air flow.
Nominal cooling duty | 6.47 kW |
---|---|
Air flow (max) | 1,310 m3/h |
Typical cooled area | 156 m3 |
Power supply | 230 V 1 ph 50 Hz Run 11 AAlso available in 230 V 1 ph 60 Hz |
Indoor noise level (max) | 62 dBA @ 3 metres |
Outdoor noise level (max) | 62 dBA @ 3 metres |
Indoor weight | 122 kg |
Outdoor weight | 20 kg |
Indoor dimensions (L x W x H) | 810 x 390 x 1,240 mm |
Outdoor dimensions (L x W x H) | 560 x 280 x 520 mm |
PAC line length | 5 metres (max 30 metres) |
Control | Automatic thermostat |
Average power consumption | 2.38 kW/h |
Optional cold air duct | 2 x 200 mm x 5 metres |
RCD
10M x 230V EXTENSION LEAD 2.5MM DIA
HEX UNIT
5M WATER LINES (MAX 6)
PAC22 S3 DUCT SPIGOT
Offices
Exhibitions
Server rooms
Switch rooms
Shops
Marquees
Hotels
Education
Restaurants
Healthcare
