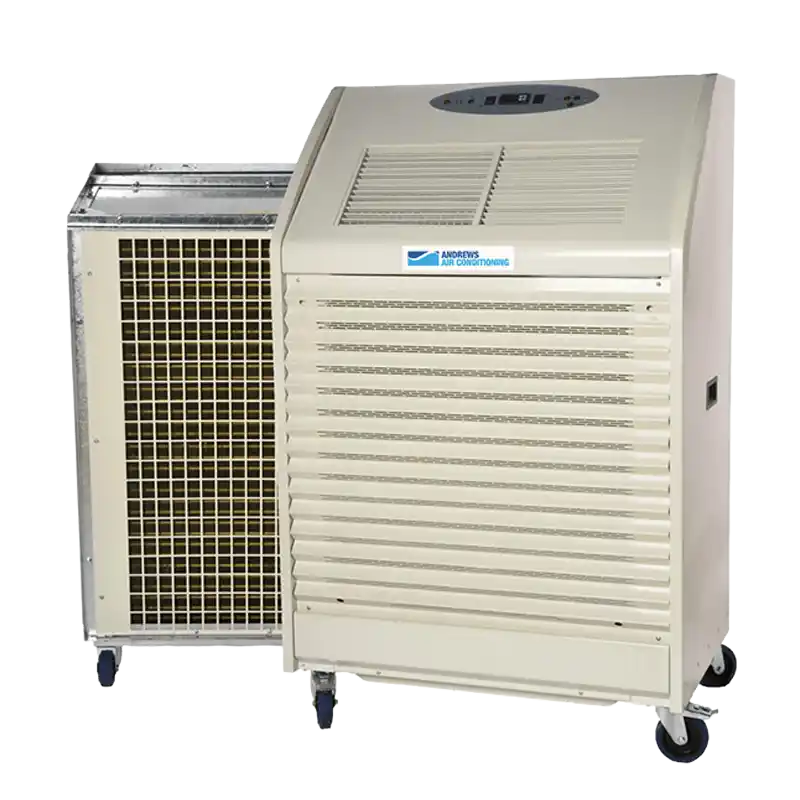

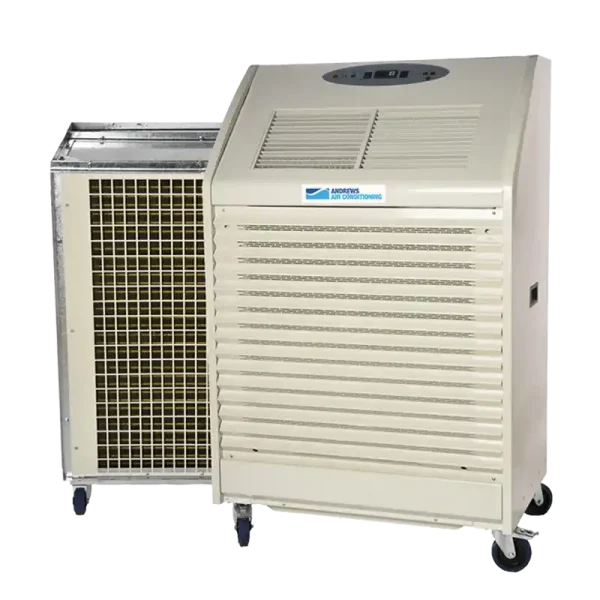

The PAC 60 is our largest capacity portable split type air conditioner that is commonly deployed in temperature critical environments where a high volume of cooling is required. This powerful water-cooled unit has a cooling capacity of 17kW, rendering it ideal for areas of up to 410m3 in size. Capable of reducing temperatures to as low as 10°C, the high performance PAC 60 has an internal unit providing cooling which is connected to an external heat exchanger that then disposes of the heat. This fully portable air conditioner comes with 15-metre lengths of line and can be installed within minutes to cool large volume applications such as computer rooms, data centres, marquees and restaurants.
HEPA filter version of this unit are now available, click here to find out more.
Feature
can be easily positioned
for versatility of location
17kw from a 3-phase 32amp power supply
for simple and fast installation
full control over desired air flow.
down to as low as 10°C
simple to operate and function
Can run unattended
Nominal cooling duty | 17 kW |
---|---|
Air flow (max) | 3500 m3/h |
Typical cooled area | 410 m3 |
Power supply | 415 V 3 ph 50 Hz 17 A |
Plug type | BS4343 5 pin 32 A |
Indoor noise level (max) | 65 dBA @ 3 metres |
Outdoor noise level (max) | 70 dBA @ 3 metres |
Indoor weight | 230 kg |
Outdoor weight | 113 kg |
Indoor dimensions (L x W x H) | 1,000 x 640 x 1,610 mm |
Outdoor dimensions (L x W x H) | 820 x 605 x 1,085 mm |
PAC line length | 15 metres (max 30 metres) |
Control | Automatic thermostat |
Average power consumption | 5.5 kW/h |
Optional cold air duct | 2 x 300 mm x 5 metres |
10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
HEX UNIT
15M WATER LINE (MAX 2)
PAC60 S3 DUCT SPIGOT
2 X 300MM COLD AIR DELIVERY DUCT (5M MAX)
DUCT CLIP
Data centres
Storerooms
Server rooms
Offices
Computer rooms
Events
Marquees
Industrial
Manufacturing
Healthcare
