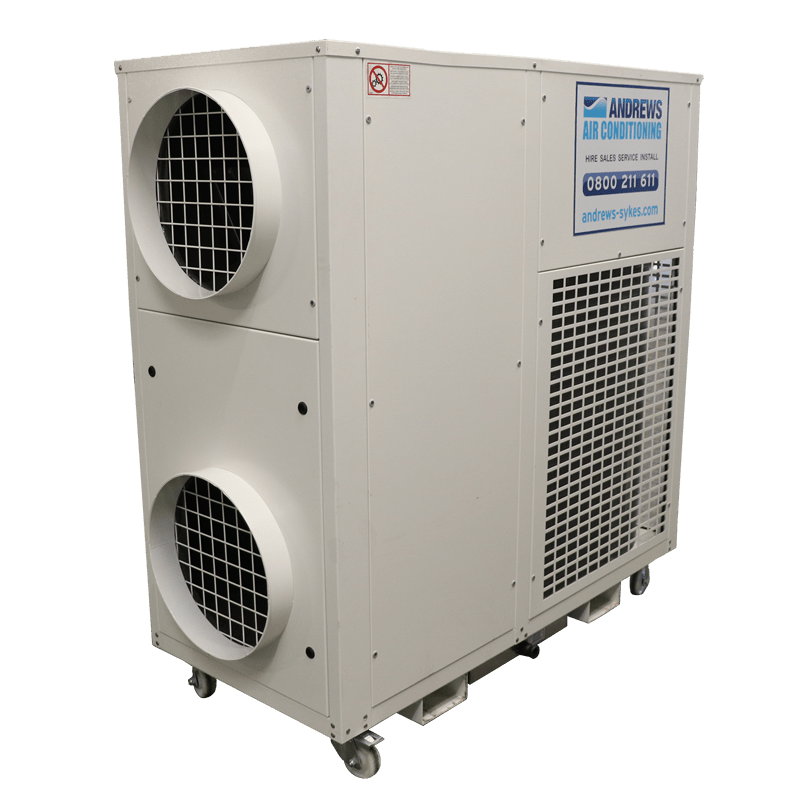

HPAC30 High Performance Air Conditioner (30kW)

The HPAC30 is a compact and easy to manoeuvre high capacity mobile air conditioning unit with a nominal cooling capacity of 30kW. As a โ€™plug and playโ€™ unit, it only requires connection to an available power supply and can be operational within minutes โ€“ needing no further intervention or attention. This particular model can generate significant volumes of cooling despite its slender 730mm frame, which enables the unit to easily fit through doorways. The HPAC30 is ideally suited to large volume spaces such as industrial processes, warehouses, factories, temporary structures, data centres and even TV & film sets.

Key Features

Feature

Feature

Quiet operation

enabling use within built-up areas

Automatic thermostat

for accurate temperature control

IP65 rated electrics

can be used outside

Compact unit

can be used in restricted areas

Energy efficient -30kW of cooling from a 32-amp power supply

Air recirculation

increases efficiency by using the returned air rather than outside air

Easy installation

for quick set-up

Wheel-mounted chassis

simplifying manoeuvrability

Product Specification

Additional information

Nominal cooling duty

30 kW

Air flow (max)

5,900 m3 /h

Typical cooled area

666 m3

Power supply

415 v 3 ph N+E RUN 22 A

Plug type

BS4343 32 A 5 pin

Noise level (max)

64 dBA @ 3 metres

Weight

435 kg

Dimensions (L x W x H)

1,600 x 730 x 1,660 mm

Supply air duct length (max)

8 metres

Return air duct length (max)

8 metres

Control

Automatic thermostat

Average power consumption

6.8 kW/h

Duct Diameter

450 mm

Accessories

450MM x 12M HEATING DUCTING WITH CLAMP
10M EXT LEAD 5 PIN 32AMP 415V 6MM DIA
20M EXT LEAD 5 PIN 32AMP 415V 6MM DIA

Environments

Data rooms
Storerooms
Server rooms
Temporary accommodation
Workshops
Open plan areas
Marquees and events
TV and film studios
Hospitality units
Film sets
