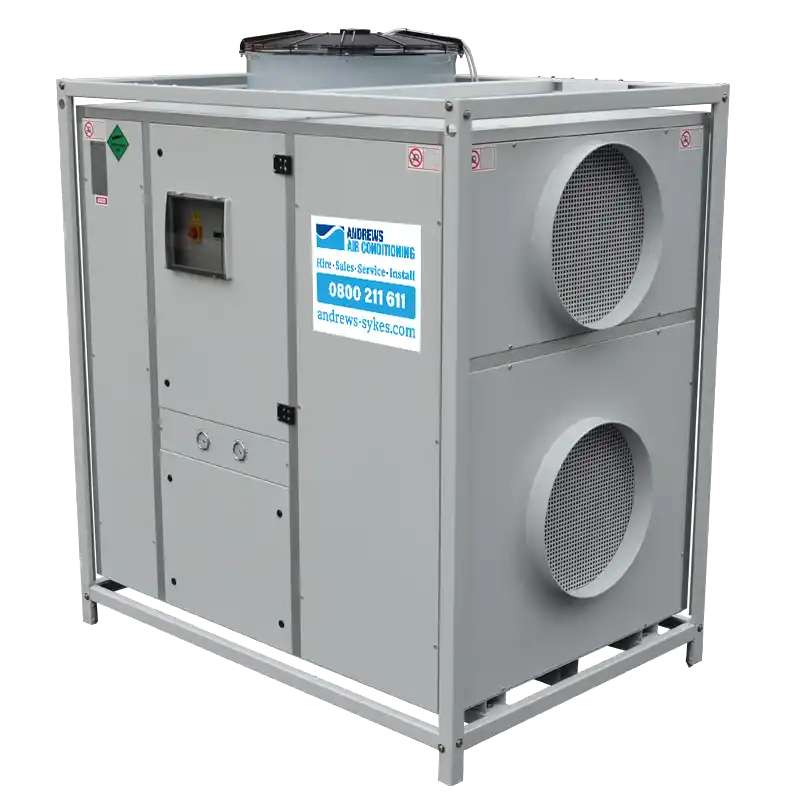

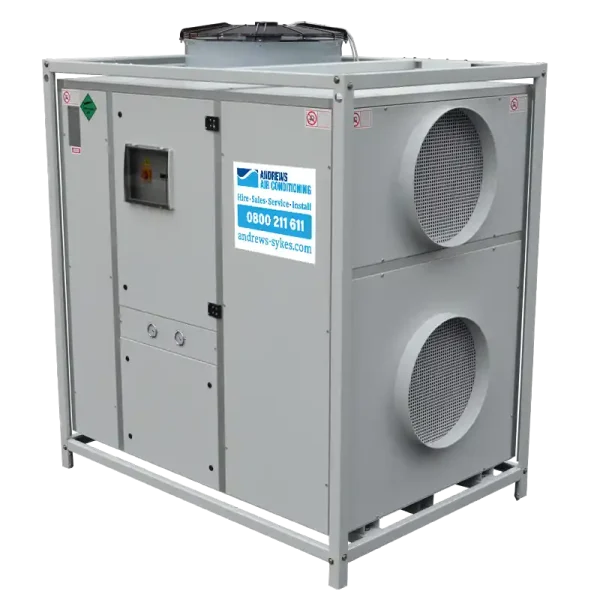

HPAC45 High Performance Air Conditioner
The HPAC45 is a robust, high capacity mobile air conditioning unit providing a nominal cooling and heating capacity of 45kW, via heat pump functionality. As a ’plug and play’ unit, it only requires connection to an available power supply and can be fully operational within minutes – requiring no further intervention or attention. The HPAC45 is ideally suited to large volume spaces such as film sets, marquees, storerooms, data centres as well as heating or cooling event space in temporary structures
Key Features
- Heat Pump technologycan be used for cooling or heating
- Quiet operationenabling use within build up areas
- Automatic thermostatcan change from cooling to heating
- IP65 rated electricscan be used outside
- Uses R410A refrigerantmaking it eco friendly
- Compact unitcan be used in restricted areas
- Energy efficient45kW of cooling and heating from a 40-amp power supply
- Air recirculationincreases efficiency by using the returned air rather than outside air
Environments
- Data rooms
- Server rooms
- Open plan areas
- Large workshops
- Events
- TV and film studios
- Hospitality units
- Film sets
Accessories
- 10M EXT LEAD 5 PIN 63 A 415V / 5 PIN 63A 415V 25MM DIA
- 20M EXT LEAD 5 PIN 63 A 415V / 5 PIN 63A 415V 25MM DIA
- 600MM X 8M HEATER DUCTING WITH CLAMP
Specifications
- Nominal cooling duty
- 45 kW
- Nominal heating duty
- 44.3 kW
- Air flow (Max)
- 7,500 m3 /h
- Typical cooled area
- 1,000 m3
- Power supply
- 415 v 3 ph N+E RUN 40 A
- Plug type
- BS4343 63 A 5 Pin
- Noise level (max)
- 65.4 dBA @ 3 metres
- Weight
- 780 kg
- Dimensions (L x W x H)
- 1,937 x 1,340 x 2,170 mm
- Duct length (max)
- 16 metres
- Duct Diameter
- 600 mm
- Control
- Automatic thermostat*
- Average power consumption
- 12.4 kW/h
*Capable of operating down to 10?C
