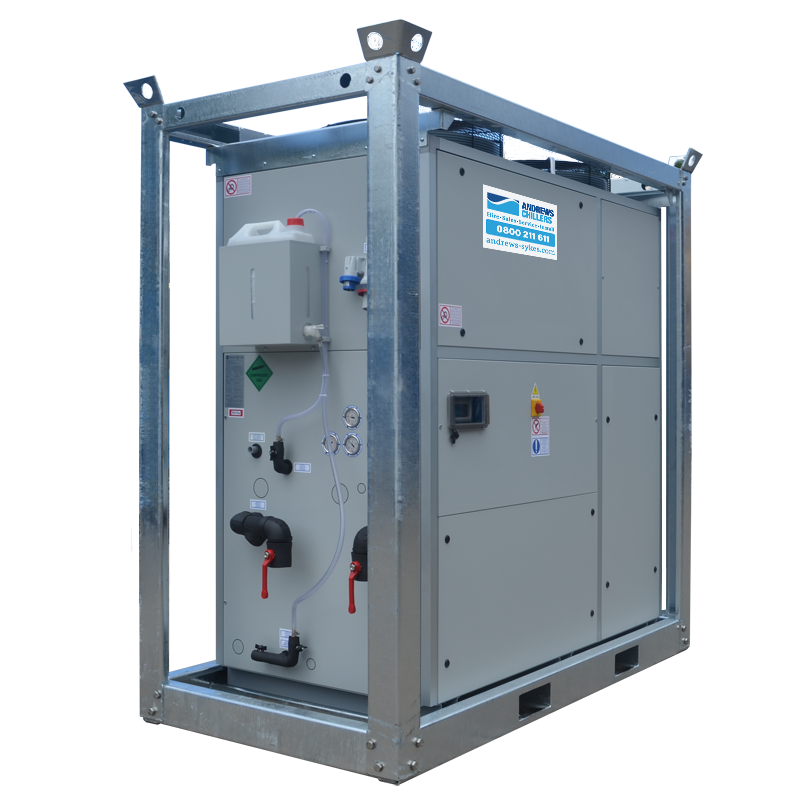

The 65kW Heat pump chiller is a powerful and reliable heat pump designed to provide industrial and commercial applications with large volumes of hot or chilled water. The 65kW Heat pump utilises R290 refrigerant and is the greenest hire Chiller available with a GWP of just 3. It is designed and tested to withstand even the harshest winter conditions and to provide hot water at an ambient temperature as low as -20 °C. Utilising innovative inverter compressor technology, it optimises energy consumption while ensuring precise temperature control. When connected to your existing system or used in combination with any air handling unit from our range, this environmentally friendly unit has the ability to provide large volumes of cooling and heating at a low power consumption. The 65kW chiller can operate unattended and is perfect for providing climate control to event spaces, server rooms, heating systems. The 65kW Heat pump can be used in industries including hospitals, food and beverages, manufacturing and petrochemicals and refineries.
Feature
facilitates transport and deployment
can be used in restricted areas
at temperatures as low as -20°C
low noise level of 50 dBA @ 10 metres
reducing running costs
for simple and fast installation
for all year-round use
can be positioned more easily
will stand up to the rigours of industrial use
| Nominal cooling duty | 65 kW |
|---|---|
| Nominal heating duty | 76 kW |
| Power supply | 415 V 3 ph N+E 50 Hz Run 40.2 A |
| Plug type | BS4343 16 A, BS4343 63 A 5 pin |
| Plug type (Gas detection) | BS4343 16 A Run 2 A |
| Noise level (max) | 50 dBA / 82 LWA @ 10 metres |
| Weight | 1,740 kg |
| Dimensions (L x W x H) | 3,090 x 1,330 x 2,775 mm |
| Control | Automatic programmer |
| Average power consumption | 12.5 kW/h |
| Water connection | 50 mm (2”) bauer |
| Nominal water flow | 3.6 l/s |
| Ambient Operating Temperature Range | -2ºC to +35ºC |
| Heating (Air Temperature Operating Range) | -20ºC to +35ºC |
| Heating (Water Temperature Range) | 30ºC to 55ºC |
| Cooling (Leaving Water Temperature Range) | -15ºC to +15ºC |
| Refrigerant gas | R290 |
| GWP | 3 |
10M EXT LEAD 5 PIN 63A 415V 25MM DIA
20M EXT LEAD 5 PIN 63A 415V 25MM DIA
6M X 50MM HOSE WITH BAUER COUPLINGS (2”)
FAN COILS/ AHU’S
MANIFOLDS
SYSTEM CONNECTION FITTINGS
PLATE HEAT EXCHANGER
REMOTE CHANGE OVER (HEAT PUMP ONLY)
Food and beverage
Construction
Healthcare
Manufacturing
Events
Pharmaceuticals
Sever rooms
Many more
