200kW Fluid Chiller

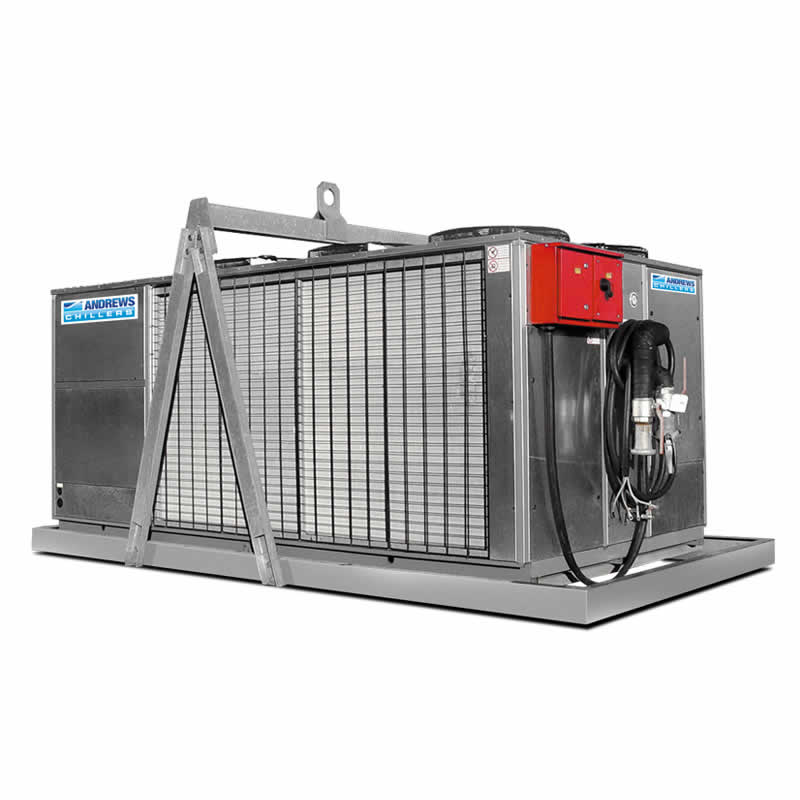

200kW Fluid Chiller Angle View Click image to Zoom

The 200kW chiller is a robust and easily portable fluid chiller, capable of providing instant cooling to large areas. By simply connecting to existing pipework, this highly efficient chiller has the ability to cool fluids down to -12 ̊C within minutes. The refrigerant unit is designed for use in all commercial and industrial applications where chilled water at very low temperatures is required. This model is available with a heat pump option, giving users the option to not only provide cooling but also heating. Our 200kW fluid chiller is ideally suited to application that require large volumes of cooling such as ice rinks, temporary body storage facilities and hospitals.

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

The 200kW chiller is a robust and easily portable fluid chiller, capable of providing instant cooling to large areas. By simply connecting to existing pipework, this highly efficient chiller has the ability to cool fluids down to -12 ̊C within minutes. The refrigerant unit is designed for use in all commercial and industrial applications where chilled water at very low temperatures is required. This model is available with a heat pump option, giving users the option to not only provide cooling but also heating. Our 200kW fluid chiller is ideally suited to application that require large volumes of cooling such as ice rinks, temporary body storage facilities and hospitals.

200kW Fluid Chiller Angle View Click image to Zoom

Key Features

  • Robust constructionwill stand up to the rigours of industrial use
  • Lower temperature capabilitydown to as low as -12 ̊C
  • Quiet operationlow noise level of 53.3 dBA @ 10 metres
  • Economicalreducing running costs
  • Fast connecting line couplingsfor simple and fast installation
  • Provides both heating and coolingfor all year-round use
  • Fully portablecan be positioned more easily
  • Lifting framefacilitates transport and deployment

Environments

  • Ice rinks
  • Process cooling
  • Body storage
  • Hotels and resorts
  • Emergency chillers
  • Computer and server rooms
  • Building and construction
  • Hospitals and healthcare

Accessories

  • 35MM POWER CABLE 5 CORE 415V (PER METER)
  • 6M X 80MM HOSE WITH BAUER COUPLINGS (3”)
  • FAN COILS/ AHU'S
  • MANIFOLDS
  • SYSTEM CONNECTION FITTINGS
  • PLATE HEAT EXCHANGER
  • REMOTE CHANGE OVER (HEAT PUMP ONLY)
  • BUFFER TANKS
  • BOOSTER PUMPS

Specifications

Nominal cooling duty
200 kW
Nominal heating duty (HP version)
200 kW
Power supply
415 V 3 ph N+E 50 Hz Run 120 A
Plug type
Hard wired 5 core x 35 mm2
Noise level (max)
53.3 dBA @ 10 metres
Weight
3,500 kg
Dimensions (L x W x H)
4,100 x 2,300 x 2,700 mm
Control
Automatic programmer
Average power consumption
37 kW/h
Generator size
140 kVA
Water connection
80 mm (3") bauer
Nominal water flow
10 l/s
Low temperature
Down to -10o C
