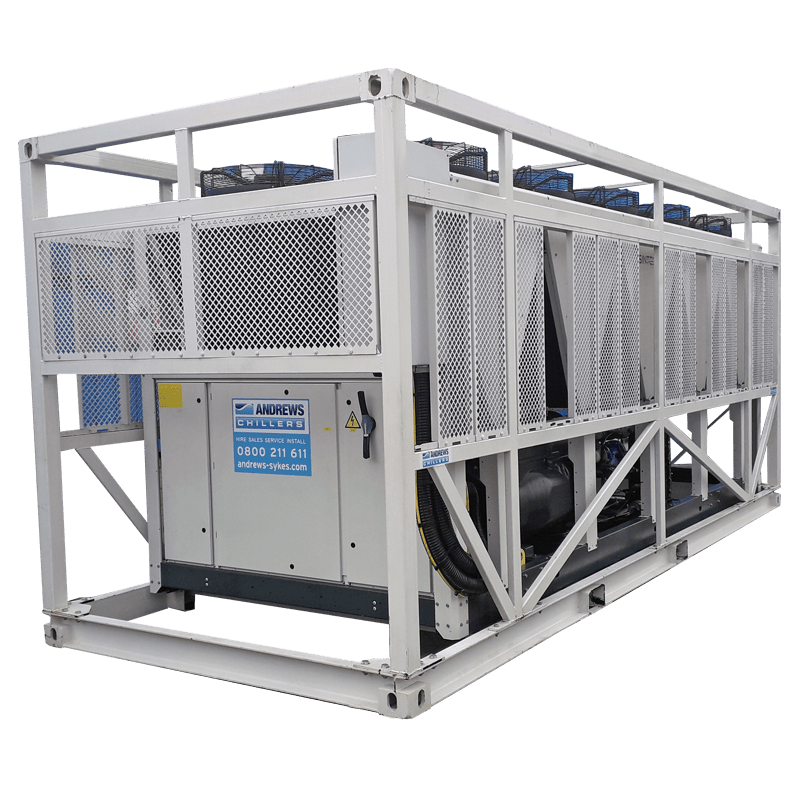

The 750kW Series 2 fluid chiller is our largest chiller unit and has been specifically designed to provide large volumes of instant cooling to temperature-critical applications. Offering enormous versatility by chilling water down to as low as low as -12°C, this refrigerant unit is fully portable and mounted on robust base plates to aid manoeuvrability. Once connected to an existing cooling system, this cold air unit can operate unattended and is ideal for providing extreme low-level cooling to large volume spaces, including Ice rinks, hospitals and temporary body storage facilities.
Key Features
- Robust constructionwill stand up to the rigours of industrial use
- Lower temperature capabilitydown to as low as -12 ̊C
- Economicalreducing running costs
- Quiet operationlow noise level of 61 dBA @ 10 metres
- Fast connecting line couplingsfor simple and fast installation
- Fully portablecan be positioned more easily
- Lifting framefacilitates transport and deployment
- Screw compressorsenergy efficient
Environments
- Ice rinks
- Petrochemicals and refineries
- Body storage
- Hotels and resorts
- Emergency chillers
- Computer and server rooms
- District cooling
- Pharmaceuticals
- Food and beverages
- Hospitals and healthcare
Accessories
- QTY 4 X 240MM POWER CABLE SINGLE CORE 415V (PER M)
- EXTERNAL PUMP SET (UP TO 44 LT/SEC)
- EXTENSION LEAD 5 PIN 63 AMP 415V FOR EXTERNAL PUMP
- 6M X 100MM HOSE BAUER OR DN100 PN16 FLANGE
- FAN COILS/ AHU'S
- MANIFOLDS
- SYSTEM CONNECTION FITTINGS
- PLATE HEAT EXCHANGER
- BUFFER TANK
Specifications
- Nominal cooling duty
- 750 kW
- Power supply
- 415 V 3 ph +E 50 Hz Run 570 A plus pump set
- Plug type
- Hard wired ( 4 x 240 mm2 )
- Noise level (max)
- 61 dBA @ 10 metres / 87 LWA @ 10 metres
- Weight
- 7,350 kg
- Dimensions (L x W x H)
- 6,400 x 2,450x 2,780 mm
- Control
- Automatic programmer
- Average power consumption
- 177 kW/h
- Generator size
- 550 kVA
- Water connection
- 100mm (4") bauer / DN100 PN16 Flange
- Nominal water flow
- 34 l/s
- Low temperature
- -120C
