Home Chillers Chillers 550kW Series 2 Fluid Chiller

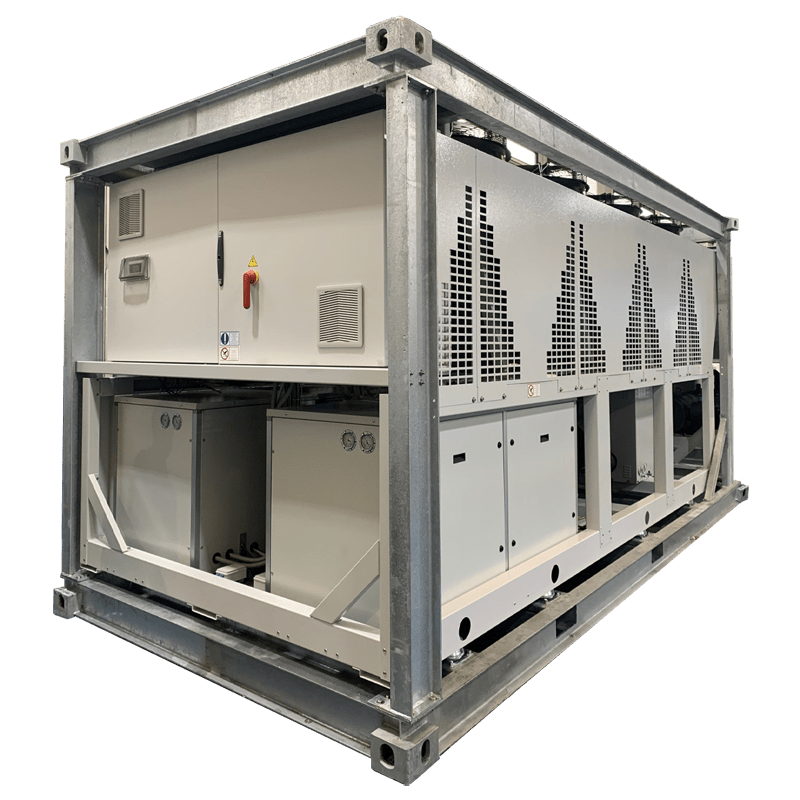

550kW Series 2 chiller

The 550kW Series 2 chiller is one of the largest fluid chillers in the Andrews range and has been designed for industrial processes requiring large volumes of chilled water. Operating on R32 gas, this chiller offers a more environmentally friendly medium for high capacity cooling projects and is significantly more energy efficient than similar products available elsewhere. Ideal for customers looking to reduce their carbon footprint, the 500kW Series 2 unit also costs less to operate than many other models of equivalent capacity. This robust chiller has been manufactured with a multitude of applications in mind and can reduce temperatures to as low as -5⁰C.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Click image to Zoom

Features

  • Robust construction – will stand up to the rigours of industrial use
  • Low temperature capability – down to as low as -5⁰C
  • Economical – reducing running costs
  • Quiet operation – low noise level of 64dBA @ 10 metres
  • Fast connecting line couplings – for simple and fast installation
  • Fully portable – can be positioned more easily
  • Lifting frame – facilitates transport and deployment
  • Scroll compressors – energy efficient

Environments

  • Hotels
  • Petrochemicals and refineries
  • Body storage
  • Hotels and resorts
  • Emergency chillers
  • Computer and server rooms
  • District cooling
  • Pharmaceuticals
  • Food and beverages
  • Hospitals and healthcare

Accessories

  • QTY 4 X 120MM POWER CABLE SINGLE CORE 415V (PER M)
  • 6M X 100MM HOSE BAUER OR DN100 PN16 FLG
  • FAN COILS/ AHU'S
  • MANIFOLDS
  • SYSTEM CONNECTION FITTINGS
  • PLATE HEAT EXCHANGER
  • BUFFER TANK

Specifications

Nominal cooling duty
550kW
Power supply
415V 3ph +E 50 Hz Run 346 A
Plug type
Power lock connections (4 x 120mm)
Noise level
64 dBA / 70 LWA @ 10 metres
Weight
4,650 kg
Dimensions (L x W x H)
4,940 x 2,440 x 2,590 mm
Control
Automatic programmer
Average power consumption
107 kW/h
Generator size
400 kVA
Water connections
100 mm (4" bauer)
Nominal water flow
24.8 l/s
