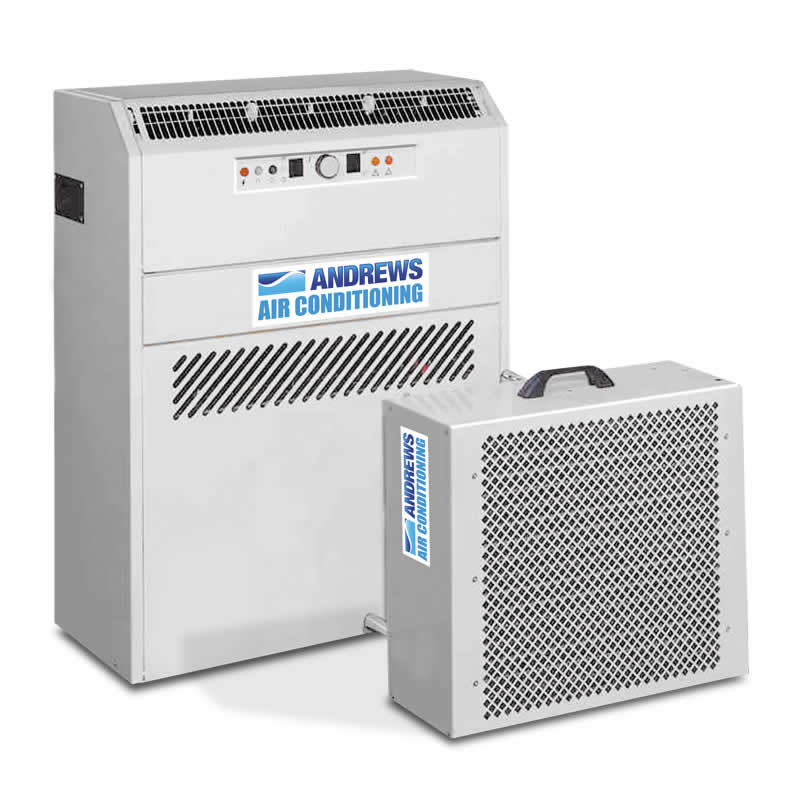

PAC 15 portable air conditioner (4.5kW)
The PAC 15, is a stylish water - cooled 'Split' portable air conditioner. Split means there are two parts to the system, the room unit and the external condenser unit, The two are connected by a length flexible line. With the PAC 15 the smaller condenser unit can be placed up to 30 meters from the room unit.
Summary
Features & Environments
Specifications
Accessories
The PAC 15, is a stylish water - cooled 'Split' portable air conditioner. Split means there are two parts to the system, the room unit and the external condenser unit, The two are connected by a length flexible line. With the PAC 15 the smaller condenser unit can be placed up to 30 meters from the room unit.
Features
|
|
Environments
|
|
- Nominal cooling duty
- 4.5 kW
- Indoor noise level (max)
- 54 dBA @ 3 metres
- Air flow (max)
- 715 m3/h
- Outdoor noise level (max)
- 62 dBA @ 4 metres
- Typical cooled area
- 109 m
- Indoor weight
- 105 kg
- Power supply
- 230 V 1 ph 50 Hz Run 7.3 A
- Outdoor weight
- 8 kg
- Control
- Automatic thermostat*
- Outdoor dimensions
- 285 x 565 x 520 mm
- Plug type
- BS1363 230 V
- PAC line length
- 5 metres
- Average power consumption
- 1.8 kW/hr
- Condensate
- Pumped to external condensor
- Optional cold air duct
- 2 x 1.5 mt x 150 mm
- Indoor dimensions (L x W x H)
- 695 x 330 x 945 mm
- Indoor dimensions
- 330 x 695 x 945 mm
- Outdoor dimensions (L x W x H)
- 565 x 285 x 520 mm
- RCD
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- HEX UNIT
- 5M WATER LINES (MAX 6)
