370kW packaged boiler

The 370kW site boiler is one of the larger containerised units in our hire fleet and has an average electrical power consumption of just 2.4kw/h. Designed for a wide range of hardwearing applications including construction sites, marquees, leisure centres, care homes, hotels, hospitals, warehouses and factories, our 370kW boiler is compatible with a 415V power supply and requires gas oil fuel in order to function. Simple to install either as a standalone unit or as part of an existing system, the unit is commonly used to bypass faulty boilers to ensure a client’s required heating or water duty is seamlessly met

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Product <br />Video
See it in action

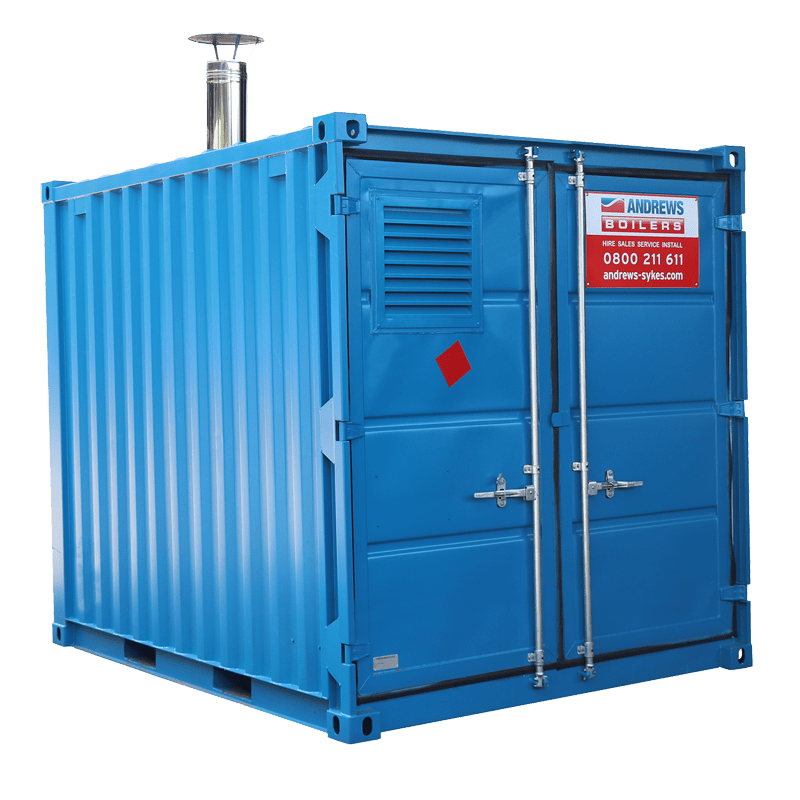

370kW packaged boiler Angle View Click image to Zoom

Features

  • Instant heating and hot water for a variety of applications
  • Suitable for supplementary use or complete replacement
  • Runs on a 3-phase 415V power supply for simple set-up
  • Seamless connection to existing systems for quick installation
  • Uninterrupted boiler service during planned maintenance
  • High maximum working temperature for multitude of environments
  • High fuel efficiency for economical operation
  • Capacities of up to 370kW achievable

Environments

  • Building sites
  • Garages
  • Shops
  • Food prep areas
  • Retail and car showrooms
  • Clothing manufacturers
  • Exhibition halls
  • Sports halls and leisure centres
  • Marquees
  • Agricultural locations
  • Factories
  • Warehouses

Accessories

  • 10M x 415V 16AMP EXTENSION LEAD 4MM DIA
  • 1000L BUNDED FUEL TANK
  • 2000L BUNDED FUEL TANK
  • 2800L BUNDED FUEL TANK
  • 3000L BUNDED FUEL TANK
  • 5M HP FUEL LINE
  • GAS OIL
  • STORTZ HOSE 80MM LPHW
  • STORTZ HOSE 50MM DHW
  • STORTZ HOSE 25MM DHW RECIRCULATION
  • STORTZ CONNECTOR 80MM ALLOY (LPHW)
  • STORTZ CONNECTOR 50MM BRASS (DHW)
  • STORTZ CONNECTOR 25MM BRASS (DHW) RECIRC
  • HEAT EXCHANGER
  • PRESSURISATION UNIT 230V (LPHW)
  • FAN COIL / AHU

Specifications

Nominal heating duty
375 kW 1279500 btu
Power supply
415 V 3 ph N+E 50 Hz Run 10 A
Noise level (max)
45 dBA @ 10 metres
Weight (kg)
2,550 kg
Dimension
5,000 x 2,200 x 2,700 mm
Plug type
BS4343 5 pin 16 A
Average power consumption
2.4 kW/h
Fuel Consumption
44 ltrs/hr
Fuel type
Gas Oil only
Dimensions (L x W x H)
3,000 x 2,200 x 2,700 mm
DHW connections (recirculation)
25 mm / 1" stortz connector
Fuel consumption (max)
44 l/h
Control
Automactic thermostat
DHW connections (flow / return)
50 mm / 2" stortz connector
LPHW connections (flow / return)
75 mm / 3" stortz connector
