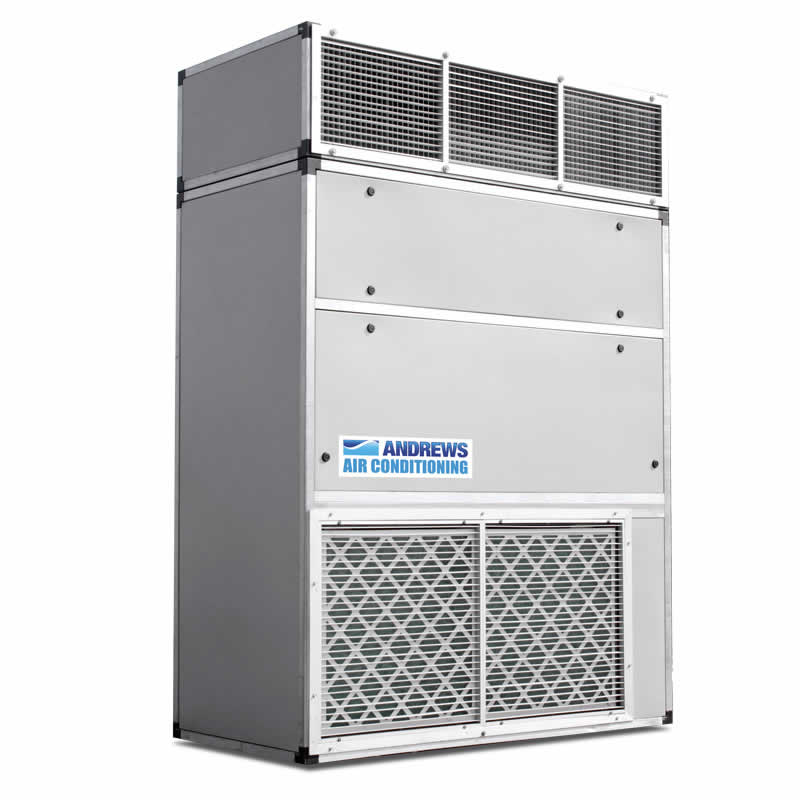

50 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.

For large spaces and process cooling

The 50kW Air Handling unit will cool/heat an area of: 1,208 m3 - 42,650 ft3
The 50kW Air Handling dimensions are 750 x 1,500 x 2,250 mm and weighs 460kg

Features
  • Safe and easy to use
  • Economical
  • Fully portable
  • Very reliable
  • Robust construction
  • Quiet operation
  • Fully automatic operation
  • Stylish design
Environments
  • Food preparation areas
  • Shops
  • Cold storage facilities
  • Marquees
  • Offices
  • Events and Exhibitions
  • Computer rooms
  • Archives
  • Temporary accommodation
Nominal heating duty
100 kW 341200 btu
Plug type
BS4343 240 V 16 A
Power supply
230 V 1 ph 50 Hz Run 4.8 A
Average power consumption
1.2 kW/h
Noise level (max)
74 dBA @ 1 metre
Water connection
32 mm / 11/4" camlock
Weight
460 kg
Dimensions (L x W x H)
1500 x 750 x 2250 (with top box)
Control
Manual
