30kW Boiler Fan Coil Series 2 Unit

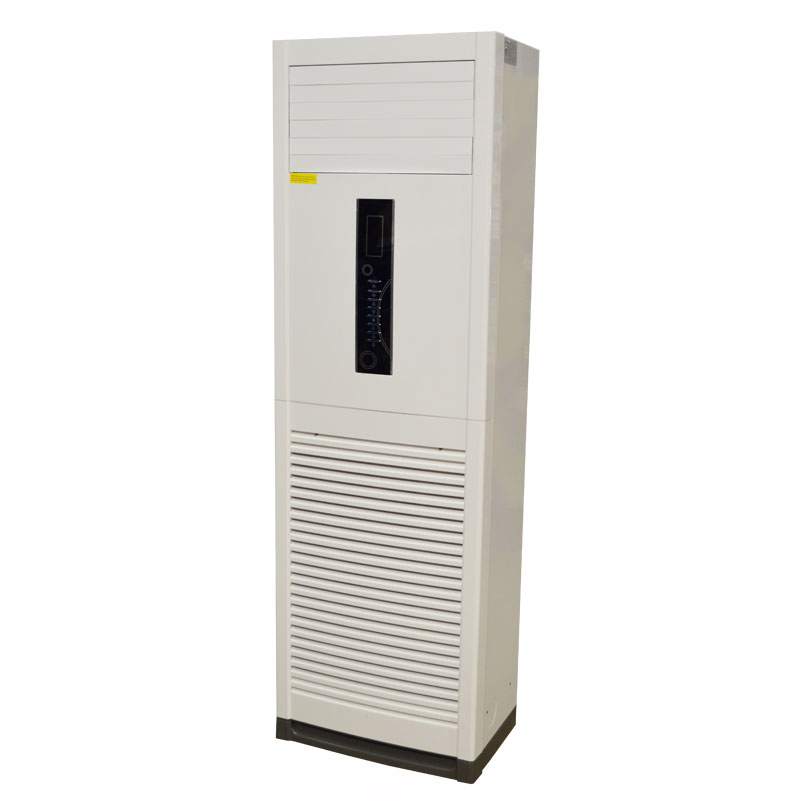

15 kW Fan Coil S2 Click image to Zoom

The 30kW fan coil is compatible with all Andrews Boiler systems as well as any existing hot water circuit, heat pump or boiler unit. This particular unit has a nominal heating duty of 30kW and is capable of producing air flows of up to 2,700³/h. Requiring just 345W/h of power when functioning at full capacity, the 30kW model - like all Andrews fan coils - features adjustable louvres and fan speed controllers.

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

The 30kW fan coil is compatible with all Andrews Boiler systems as well as any existing hot water circuit, heat pump or boiler unit. This particular unit has a nominal heating duty of 30kW and is capable of producing air flows of up to 2,700³/h. Requiring just 345W/h of power when functioning at full capacity, the 30kW model - like all Andrews fan coils - features adjustable louvres and fan speed controllers.

15 kW Fan Coil S2 Click image to Zoom

Key Features

  • Easy installation enabling swiftconnection in emergency scenarios
  • Quiet operation for deploymentin noise-sensitive areas
  • Quick-release pipe adaptors aidingswift decommissioning process
  • Economical performance ensuringlow running costs
  • Safe and easy to use allowingsimplified operation
  • Environmentally-friendly enablinggreater sustainability
  • Reliable product affording customerpeace of mind
  • Robust construction facilitating usein testing applications

Environments

  • Production lines
  • Hospitals
  • Shops
  • Cold storage facilities
  • Marquees
  • Offices
  • Factories
  • Museums
  • Server rooms
  • IT Suites
  • Food preparation areas
  • Events
  • Exhibition booths
  • Computer rooms
  • Archives
  • Temporary accommodation
  • Restaurants
  • Warehouses
  • Workshops
  • Garages

Specifications

Nominal cooling duty
30 kW
Nominal heating duty
60 kW
Air flow (max)
4,197 m3 /h
Power supply
230 V 1 ph 50 HZ Run 8 A
Plug type
BS1363 13 A
Noise level (max)
59 dBA @ 1 metre
Weight
160 kg
Dimensions (L x W x H)
860 x 542 x 2,025 mm (with top box)
Control
Automatic thermostat
Average power consumption
1.61 kW/h
Integral condensate pump
Yes
Fan speed controller
Yes
