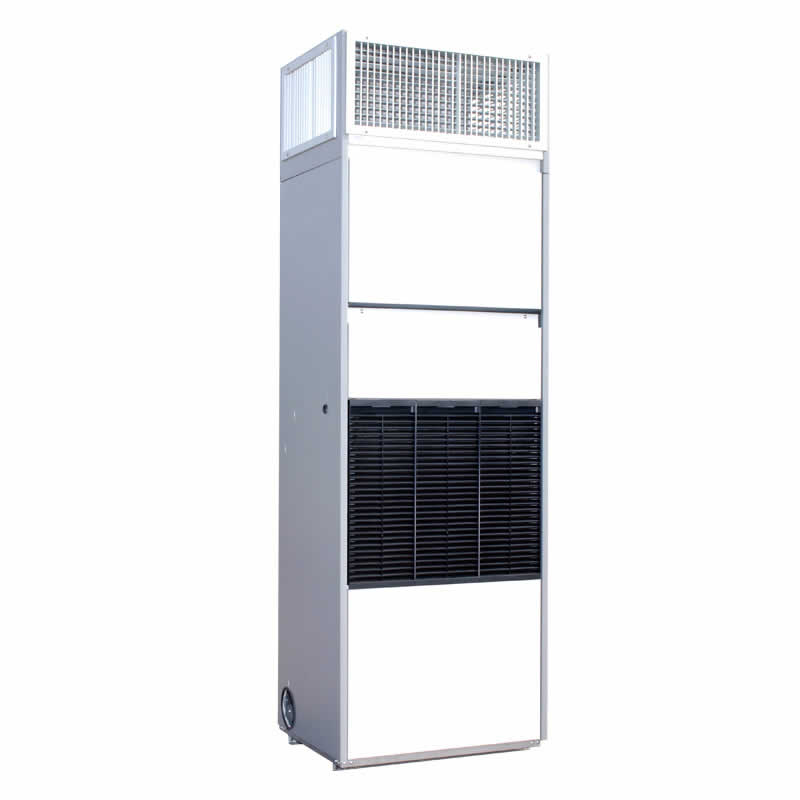

15/30kW Boiler Fan Coil
15 kW Fan Coil unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
- Full Details
- Features / Environments
- Specifications
15 kW Fan Coil unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
For large spaces and process cooling
The 15kW Fan Coil will cool/heat an area of 306 m3 - 10,833 ft3
The 15kW Fan Coil dimensions are 500 x 650 x 1,700 mm + 360 mm (with diffuser) and weighs 68kg
Features
|
|
Environments
|
|
- Nominal heating duty
- 30 kW 102360 btu
- Plug type
- BS1363 13 A
- Air flow (max)
- 2048 m3/h
- Average power consumption
- 690 W/h
- Power supply
- 230 V 1 ph 50 Hz Run 3 A
- Water connection
- 32 mm / 11/4" camlock
- Noise level (max)
- 56 dBA @ 1 metre
- Dimensions (L x W x H)
- 650 x 500 x 2060 mm (with top box)
- Weight (kg)
- 96 kg
- Control
- Automatic thermostat
