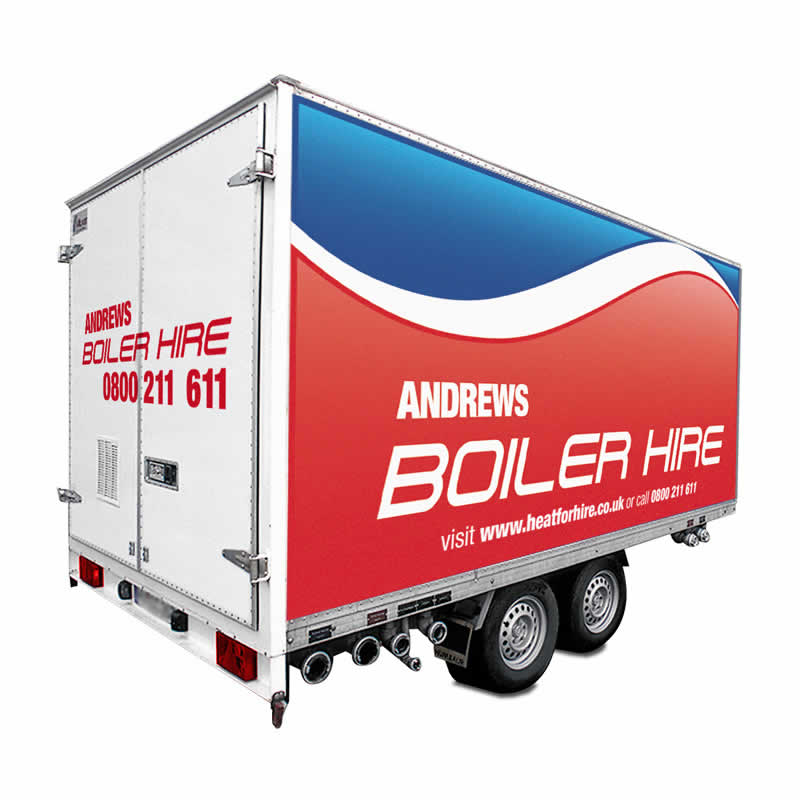

500kW trailer mounted boiler

The 500kW trailer mounted boiler offers a reliable and high capacity heating and hot water system that can be quickly moved from one location to another. Perfect for emergency scenarios, this unit can operate as a standalone boiler unit or be connected to a customer’s existing system to provide supplementary assistance. Our 500kW trailer mounted boiler runs on a 415 3-phase power supply and requires gas oil fuel in order to function. Suitable for a broad spectrum of environments including construction sites, warehouses, marquees, hospitals and warehouses, the product provides a greater degree of flexibility than would be possible with a traditional containerised boiler.

Key Features

Feature

Instant heating and hot water for

wide range of applications

Quiet operation for deployment in

noise-sensitive applications

Seamless connection

to existing systems

Capacities of up to

500kW achievable

Compact and manoeuvrable design

aiding transportation

Simple installation for

instant deployment

Vandal proof container

for maximum security

Excellent fuel efficiency enabling

low running costs

Product Specification

Additional information

Nominal heating duty	500 kW
Power supply	415 V 3ph N+E 50 Hz Run 16A
Plug type	BS4343 5 pin 32 A
Noise level	45 dBA @ 10 metres
Weight	4,000 kg
Dimensions (L x W x H)	3,000 x 2,400 x 2,600 mm
Fuel type	Gas Oil/Natural Gas
Max fuel consumption	42 l/h Gas Oil
LPHW connections	80 mm (3") storz coupling
DHW connections	50 mm (2") storz coupling
DHW recirculation connections	25 mm (1") storz coupling
Natural gas connections	2" BSP coupling

Downloads

Environments

Building Sites
Garages
Shops
Food prep areas
Retail and car showrooms
Clothing manufactures
Exhibition halls
Sports halls and leisure centres
Marquees
Agricultural Locations
Factories
Warehouses
