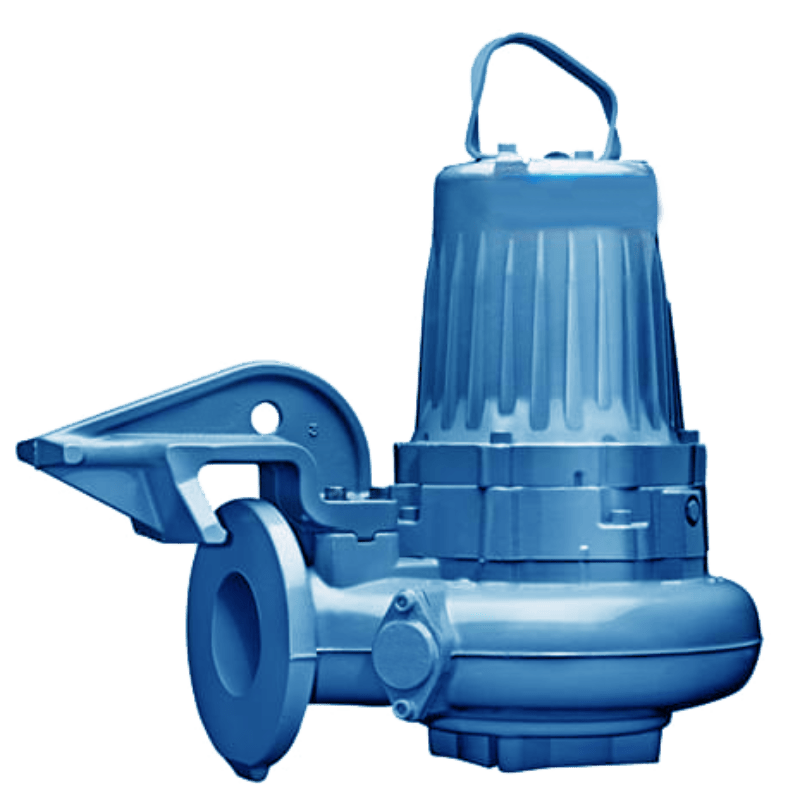

NX3102 SH submersible wastewater pump

The NX3102 SH is a robust 4.2kW electric submersible wastewater pump that has been manufactured for medium head applications and specifically tailored to the requirements of utility companies and contractors. This small, compact model delivers heads of up to 30 metres and maximum flows of 30 litres per second, requiring 4” hose on the suction side and 3” hose on the discharge. Our NX3102 SH units incorporate the industry’s latest technology to guarantee optimum performance levels. This pump can be connected to all guide rail adaptions, with its compact chassis enabling seamless deployment in tight areas where space is at a premium.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Click image to Zoom

Features

  • Flexible and modular design requiring minimal service and maintenance
  • Robust and reliable ensuring suitability to challenging environments
  • Efficient operation allowing significant energy savings for the end user
  • Motor protection reducing the risk of damage and breakdowns
  • Non-clog performance for long-term projects
  • Mechanical self-cleaning design permitting high sludge concentration
  • Compact pumps intended for use in small spaces
  • Excellent portability for quick installation

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utilities
  • General maintenance
  • High head applications

Accessories

  • PUMP STAND
  • CLAWS FOR SLIDE RAIL INSTALLATION
  • 20 METRE CABLE

Specifications

Model
NX3102 SH
Motor type (V)
400 (3-phase) 50Hz
Motor rating (kW)
4.2
Running current (A)
8.1
Running speed
2,915 rpm
Discharge port (mm)
80
Suction inlet port (mm)
100
EX rated
Yes
Cooling jacket
No
Dimensions (mm)
720 x 460
Weight (kg)
98
Guide rail option
Dimensions (mm)
610 x 460
