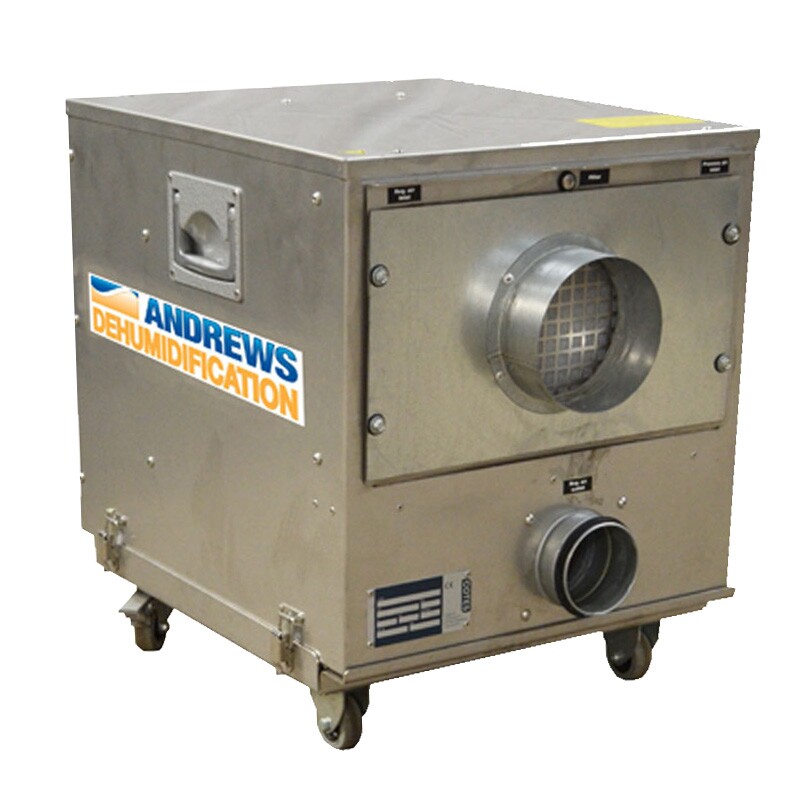

DS40 Desiccant dehumidifier

The DS40 desiccant dehumidifier has been designed for use in instances where work is being carried out at low temperatures. This particular unit is a perfect drying solution in applications where temperatures are around 10°C, operating more efficiently than refrigerant dehumidifiers. Capable of extracting up to 55 litres of moisture per 24 hours of operation, the DS40 model’s small specifications render it perfect for tight areas requiring drying. Once installed, the product is capable of operating unattended and is suitable for deployment in a range of environments including building sites, warehouses, pharmaceutical processes and tank drying.

Key Features

Feature

Extraction rates of up to 55 litres every 24 hours

ideal for large areas

Quiet operation

can be left running without disrupting others

Fully automatic

can run unattended

Compatible with ducting

for projects with site restrictions

Large airflows

perfect for high capacity drying

Reduced power consumption

affordable running costs

Simple installation

enabling immediate use

Robust construction

can be used in challenging environments

Product Specification

Additional information

Extraction rate (max)	55 litres/24hr
Nominal extraction duty at 75% RH @ 20°C	33 litres / 24hr
Air flow (max)	160 m³/h
Keep dry area (typical)	726 m³
Dry out area (typical)	363 m³
Power supply	110 V 1 ph 50 Hz Run 11.5 A
Plug type	BS4343 110 V 32 A
Generator size	3 kVA
Duct length (max)	5 metres
Noise level (max)	66 dBA @ 1 metre
Weight	30 kg
Dimensions (L x W x H)	550 x 460 x 700 mm
Control	Manual (Humidistat Option)
Average power consumption	2.1 kw/h
Duct diameters	Wet out 80 mm, Dry out 100 mm, Process in 125 mm

Downloads

Accessories

230V / 110V 5KVA CONTINIOUS TRANSFORMER
10M x 110V EXTENSION LEAD 4MM DIA
20M x 110V EXTENSION LEAD 4MM DIA
REMOTE HUMIDISTAT
FLEXIBLE DUCT (WET AIR) 80MM
FLEXIBLE DUCT (DRY AIR) 100MM
FLEXIBLE DUCT (PROCESS AIR) 100MM
DUCT CLIPS

Environments

Building drying
Industrial processes
Electrical switch rooms
Agriculture
Tank drying
Warehouses
Tank coating
Pharmaceutical processes
Computer rooms
Marine
