Immediate Despatch

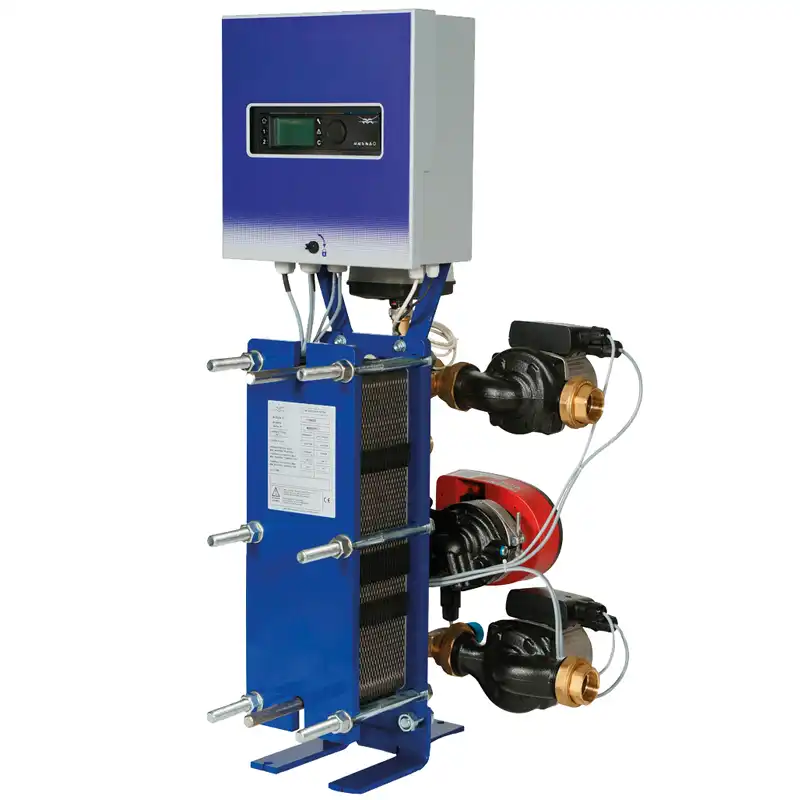

500 kW Controllable DHW plate pack heat exchanger
Separates clean hot tap water from a boiler fed heating system. For use with Andrews Boilers. Fully controllable to achieve exact temperature requirements.
Also available 300 kW / 100 kW
Feature
| Heating Capacity | 520 kW |
|---|---|
| DHW Inlet Temperature (Design) | 25°C |
| DHW Outlet Temperature (Design) | 70°C |
| Boiler (Primary) Inlet Temperature | 90°C |
| Boiler (Primary) Outlet Temperature | 70°C |
| Pressure Drop (DHW) | 0.5 BAR |
| Mains Cold Water Inlet Connection | 2” Storz |
| Hot Water Outlet Connection | 2” Storz |
| DHW Return Connection | 1” Storz |
| Primary Flow and Return Connections | 2” Storz |
| Plate Material | 316 Stainless |
| DHW Fittings | Brass |
| Electrical Supply | 230 V 1 ph 16 A (Run 6 A) |
| Controls | Programmable 3 Way Actuating Valve |
| DHW Pump | Included |
| Weight in frame (Dry) | 375 kg |
| Dimensions (L x W x H) | 1,600 x 620 x 1,660 mm |
