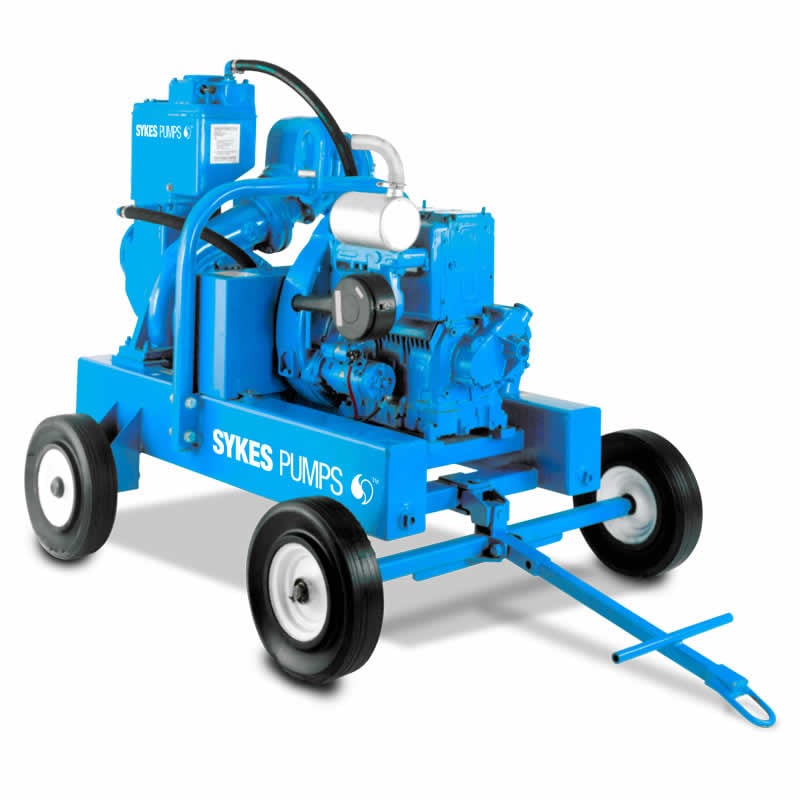

The GP 150M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self - priming, the GP 150M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 150M, is powered by a 20kw Lister engine. All Sykes General Purpose pumps are available with alternative engines, motors and chassis configurations.

Pump performance

GP 150M. Max Head: 38.0 m. Max Flow: 90.0 l/s. Max Solid: 52mm. The GP150 M dimensions are H1,635 X W1,500 X L2,100mm and it weighs 1,133kg excluding fuel

  • Hard wearing cast Iron parts
  • Easy to tow
  • Corrosion resistant
  • Hours of unattended operation
  • Available as a four wheeled trailer
  • Automatic priming and re-priming
  • Available as skid mounted
  • Compact and manoeuvrable
  • Available as a high speed road trailer
  • Choice of engines
  • Easy maintenance
  • Electric motor option
  • Clean and dirty water
  • Site dewatering
  • Heaviest Sludge
  • Quarries
  • Heaviest Slurry
  • Waste water
  • Over pumping
1230 kg with fuel / 1133 kg without fuel
Pump Materials
Main pump: SG grade iron
(LxWxH)mm: 2100x1500x1635, typical length including tow bar 2780mm
Pipe Connections
Suction: 6” table D, Discharge: 6” table D, Bauer couplings option: 6”
Noise level
Typical noise level at 1m = 94 - 98 dBA, Typical noise level at 7m = 77 - 82 dBA
Engine(Type / Power / Speed)
Lister TR3 air cooled diesel engine developing 20.2 kW at 1800 rpm
Max head: 38 m / Max flow: 90 l/s / Max solid: 52 mm
Prime System
Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 60 cfm/ Non Return Valve
Fuel Tank Capacity
122 litres. Max 24 hour with cleaning and flushing facilities
Shaft Seal
Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
Fuel Consumption
Typical fuel consumption on full load @ 1800 rpm: 5.5 litres/hour
Health and Safety
Ear Defenders, Gloves, Boots, safety footwear, Protective clothing, Noise power level Lwa: 107 dB
4 wheel site trailer / high speed trailer/ Skid mounted/ Skid mounted C/w Roll cage
