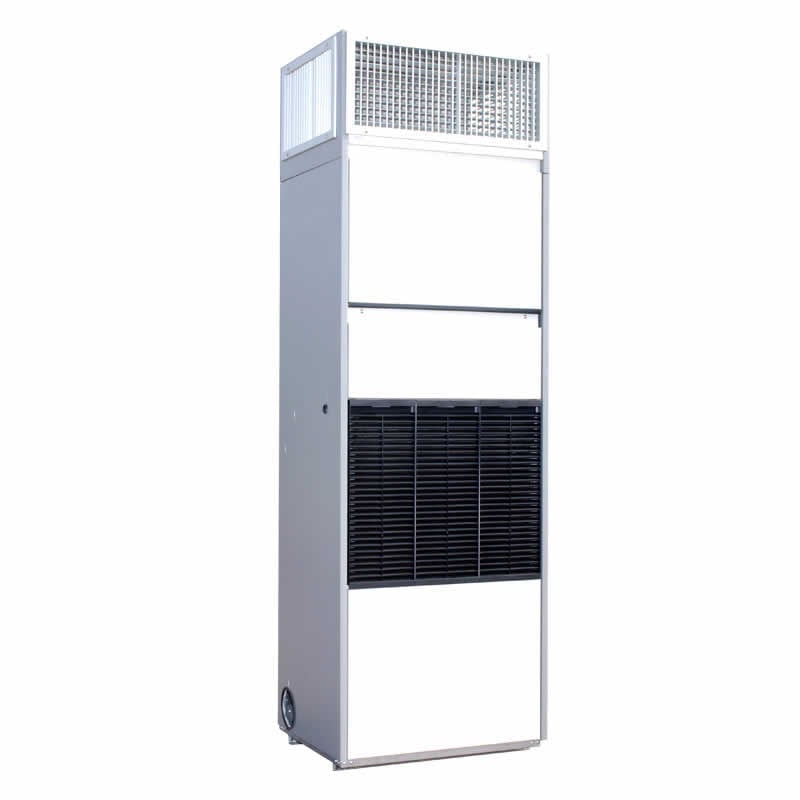

15 kW Fan Coil unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.

For large spaces and process cooling

The 15kW Fan Coil will cool/heat an area of 306 m3 - 10,833 ft3
The 15kW Fan Coil dimensions are 500 x 650 x 1,700 mm + 360 mm (with diffuser) and weighs 68kg

Features
  • Safe and easy to use
  • Economical
  • Fully portable
  • Very reliable
  • Robust construction
  • Quiet operation
  • Fully automatic operation
Environments
  • Food preparation areas
  • Shops
  • Cold storage facilities
  • Marquees
  • Offices
  • Events and Exhibitions
  • Computer rooms
  • Archives
  • Temporary accommodation
  • Restaurants
Nominal heating duty
30 kW 102360 btu
Plug type
BS1363 230 V
Nominal cooling duty
15 kW 51180 btu
Average power consumption
690 W/h
Air flow (max)
2048 m3/h
Nominal heating duty (HP version)
30 kW 102,360 btu
Power supply
230 V 1 ph 50Hz  Run 3 A
Water connection
32 mm / 11/4" camlock
Noise level (max)
52 dBA @ 1 metre
Condensate
Pumped
Weight
96 kg
Dimensions (L x W x H)
540 x 300 x 1800 mm
Control
Automatic thermostat
